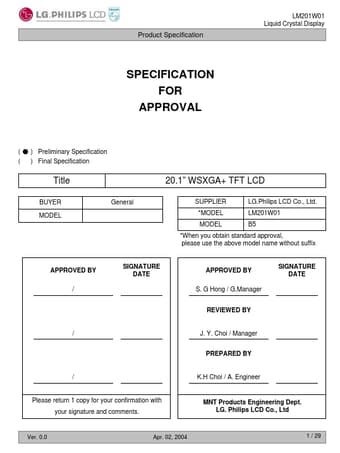

LM201W01-B5 Datasheet Preview — Preview of LM201W01-B5 PDF

Datasheet Details

Part number	LM201W01-B5
Manufacturer	LG
File Size	574.60 KB
Description	LCD
Datasheet	LM201W01-B5_LG.pdf

LM201W01-B5 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTREISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR INPUT DATA REFERNECE POWER SEQUENCE OPTICAL SFECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS ITEM Page 1 2 3 4 5 6 6 9 13 14 15 16 17 22 25 26 26 26 27 27 27 28 Ver.0.0 Apr.02, 2004 2 / 29 Datasheet pdf - http://www.DataSheet4U.net/ www

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Operating Mode Surface Treatment Ver. 0.0 20.1 inches(511.133mm) diagonal (Aspect ratio 16:10) 459.4(H) x 296.4 (V) x 23.7(D) mm (Typ. ) 0.258mm x 0.258mm 1680 horiz. By 1050 vert. Pixels RGB strip arrangement 8bit, 16,7 M colors 300 cd/m2 (Center 1 point, Typ. ) Viewing Angle Free ( R/L 176(Typ. ), U/D 176(Typ)) Total TBD Watt(Typ. ) (TBD Watt@VLCD, 31.08.
