LC550DUJ-SGK1 - WUXGA TFT LCD

The LC550DUJ-SGK1 by LG is a WUXGA TFT LCD. Below is the official datasheet preview.

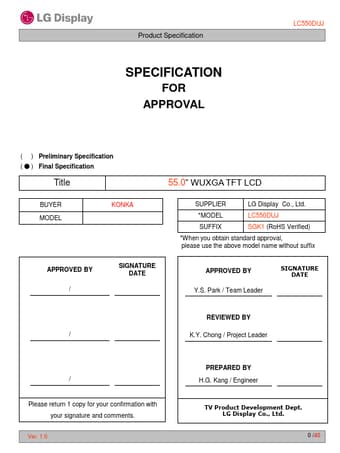

LC550DUJ-SGK1 WUXGA TFT LCD by LG - Datasheet Preview — Official preview page of the **LC550DUJ-SGK1** WUXGA TFT LCD datasheet (LG).

Datasheet Details

Part number	LC550DUJ-SGK1
Manufacturer	LG
File Size	1.07 MB
Description	WUXGA TFT LCD
Datasheet	LC550DUJ-SGK1-LG.pdf
Additional preview pages of the LC550DUJ-SGK1 datasheet.

LC550DUJ-SGK1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS INTARA INTERFACE SIGNAL SPECIFICATION COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS MECHANICAL DIMENSION BOARD ASSEMBLY DIMENSION CONTROL BOARD ASSEMBLY DIMMENSION RELIABILITY INTERNATIONAL STANDARDS SAFETY ENVIRONMENT PACKING PACKING FORM PRECAUTIONS ASSEMBLY PRECAUTIONS OPERATING PRECAUTIONS ELECTROST

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Drive IC Data Interface Transmittance (With POL) Viewing Angle (CR>10) Weight Display Mode Surface Treatment (Top) Ver. 1.0 54.64 inches(1387.80mm) diagonal 1225.2 (H) x 696.7 (V) x 1.3mm(D) (Typ. ) 0.630 mm x 0.630 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 Million colors Source D-IC : 8-bit EPI, gamma reference voltage, and control signals Gate D-IC : Gate In Panel 7.10 %(Typ. ) Viewing angle.
