LC5525F - power IC for the LED driver

Name: LC5525F
SKU: LC5525F-797906

SANKEN

📥 Download Datasheet

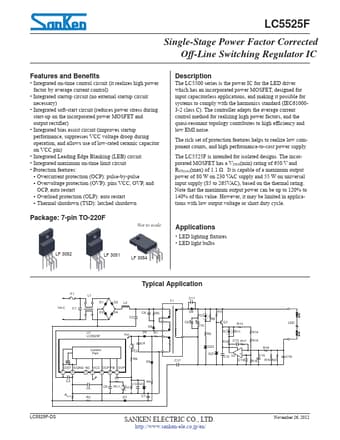

LC5525F Datasheet Preview — Preview of LC5525F PDF

Datasheet Details

Part number	LC5525F
Manufacturer	Sanken
File Size	355.73 KB
Description	power IC for the LED driver
Datasheet	LC5525F-SANKEN.pdf

LC5525F Product details

Description

The LC5500 series is the power IC for the LED driver which has an incorporated power MOSFET, designed for input capacitorless applications, and making it possible for systems to comply with the harmonics standard (IEC610003-2 class C).

Features

Integrated on-time control circuit (it realizes high power factor by average current control).
Integrated startup circuit (no external startup circuit necessary).
Integrated soft-start circuit (reduces power stress during start-up on the incorporated power MOSFET and output rectifier).
Integrated bias assist circuit (improves startup performance, suppresses VCC voltage droop during operation, and allows use of low-rated ceramic capacitor on VCC pin).
