LC550EUF-PEF1 - Display Module

RAKEN

📥 Download Datasheet

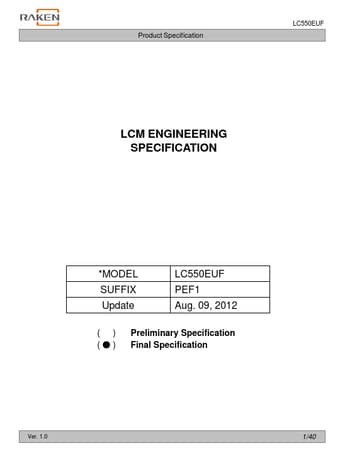

LC550EUF-PEF1 Datasheet Preview — Preview of LC550EUF-PEF1 PDF

Datasheet Details

Part number	LC550EUF-PEF1
Manufacturer	RAKEN
File Size	1.09 MB
Description	Display Module
Datasheet	LC550EUF-PEF1-RAKEN.pdf

LC550EUF-PEF1 Product details

Description

ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS LVDS SIGNAL SPECIFICATIONS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC ENVIRONMENT PACKING INFORMATION OF LCM LABEL PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE OP

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment 54.64 inches(1387.80mm)diagonal 1229.4(H) X 711.8(V) X 9.6(B) X 20.7(D) 0.630mm x 0.630 mm 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 10bit(D), 1.06Billon colors 400 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 107.7W (Typ. ) (Logic=9.4Wwith T-CON, LED Backlight =98.3W)(TBD).
