LC550DUH-SCM1 - WUXGA TFT LCD

📥 Download Datasheet

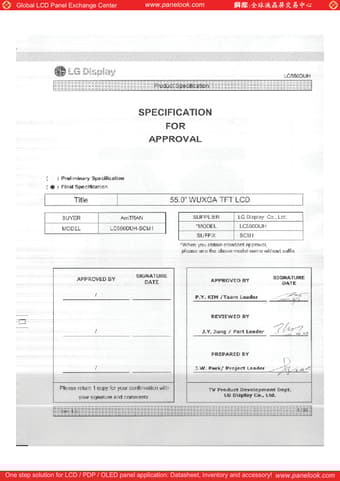

LC550DUH-SCM1 Datasheet Preview — Preview of LC550DUH-SCM1 PDF

Datasheet Details

Part number	LC550DUH-SCM1
Manufacturer	LG
File Size	2.05 MB
Description	WUXGA TFT LCD
Datasheet	LC550DUH-SCM1-LG.pdf

LC550DUH-SCM1 Product details

Description

CONTENTS ITEM ABSOLUTE MAXIMUM RATINGS ELECTRICAL SPECIFICATIONS ELECTRICAL CHARACTERISTICS INTERFACE CONNECTIONS SIGNAL TIMING SPECIFICATIONS SIGNAL TIMING WAVEFORMS COLOR DATA REFERENCE POWER SEQUENCE OPTICAL SPECIFICATIONS MECHANICAL CHARACTERISTICS RELIABILITY INTERNATIONAL STANDARDS SAFETY EMC PACKING DESIGNATION OF LOT MARK PACKING FORM PRECAUTIONS MOUNTING PRECAUTIONS OPERATING PRECAUTIONS ELECTROSTATIC DISCHARGE CONTROL PRECAUTIONS FOR STRONG LIGHT EXPOSURE STORAGE HANDL

Features

Active Screen Size Outline Dimension Pixel Pitch Pixel Format Color Depth Luminance, White Viewing Angle (CR>10) Power Consumption Weight Display Mode Surface Treatment Ver. 1.0 54.64 inch (1387.80mm) diagonal 1286.0(H) x 745.0 (V) x 40.0 mm(D) (Typ. ) 0.630 mm x 0.630 mm x RGB 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement 8-bit, 16.7 M colors ( 1.06B colors @ 10 bit (D) System Output ) 500 cd/m2 (Center 1point ,Typ. ) Viewing angle free ( R/L 178 (Min. ), U/D 178 (Min. )) Total 171.5W (.
