LMNP2093EX7F - N & P Pair Enhancement Mode MOSFET

The LMNP2093EX7F by LFC semi is a N & P Pair Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

LMNP2093EX7F N & P Pair Enhancement Mode MOSFET by LFC semi - Datasheet Preview — Official preview page of the **LMNP2093EX7F** N & P Pair Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number	LMNP2093EX7F
Manufacturer	LFC semi
File Size	817.88 KB
Description	N & P Pair Enhancement Mode MOSFET
Datasheet	LMNP2093EX7F-LFCsemi.pdf

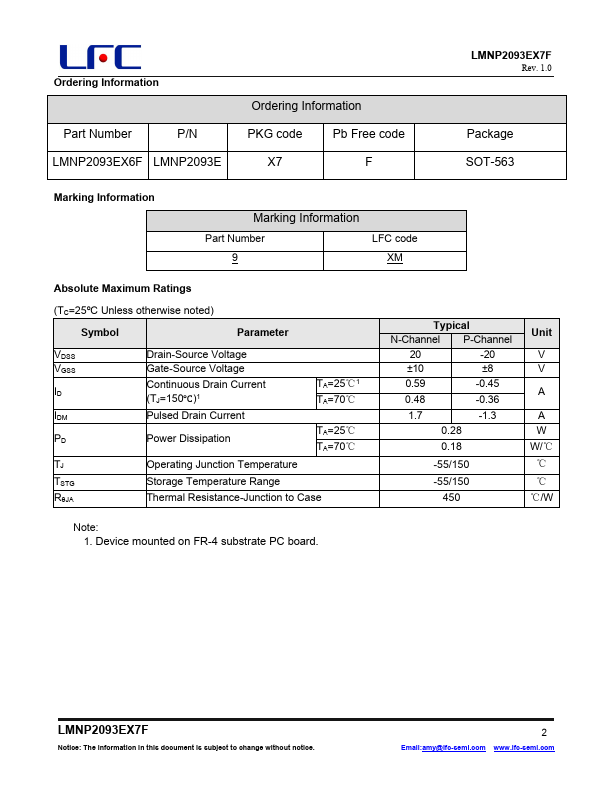

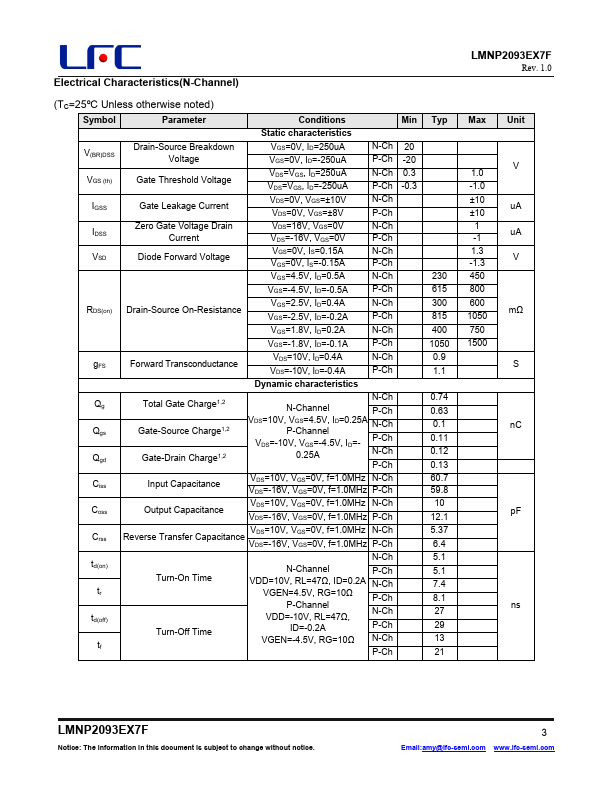

Additional preview pages of the LMNP2093EX7F datasheet.

LMNP2093EX7F Product details

Description

LMNP2093E is the N and P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Load Switch for Portable Devices, Smart Phones, Pagers.Pin Configuration LMNP2093EX7F (SOT-563) Pin D

Features

N-Channel.
20V/0.5A, RDS(ON)=450mΩ@VGS=4.5V.
20V/0.4A, RDS(ON)=600mΩ@VGS=2.5V.
20V/0.2A, RDS(ON)=750mΩ@VGS=1.8V.
P-Channel.
-20V/-0.5A, RDS(ON)=800mΩ@VGS=-4.5V.
-20V/-0.2A, RDS(ON)=1050mΩ@VGS=-2.5V.
-20V/-0.1A, RDS(ON)=1500mΩ@VGS=-1.8V.
Low-Voltage Operation.
High-Speed Circuits.
Low Battery Voltage Operation.
SOT-563 package design Product.
