LMNP2062RF - 20V N+P Dual Channel MOSFET

The LMNP2062RF by LFC semi is a 20V N+P Dual Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMNP2062RF
Manufacturer	LFC semi
File Size	900.98 KB
Description	20V N+P Dual Channel MOSFET
Datasheet	LMNP2062RF-LFCsemi.pdf

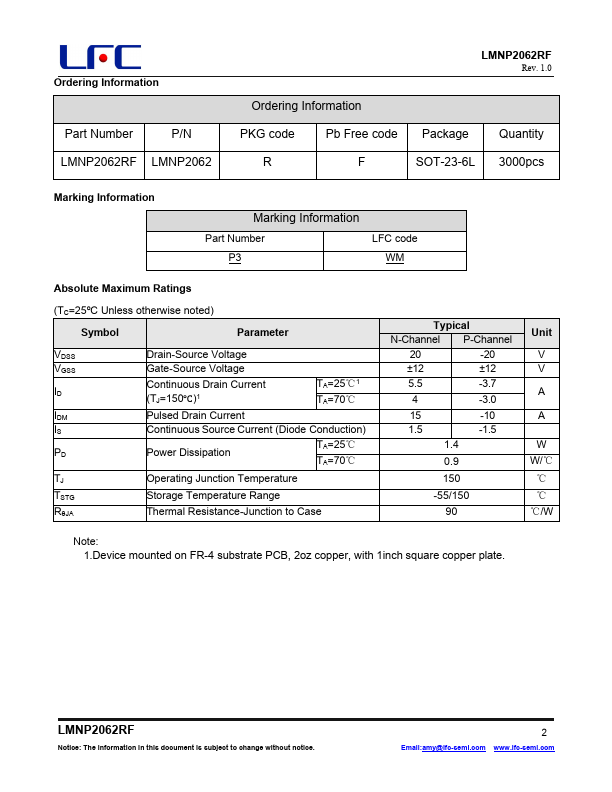

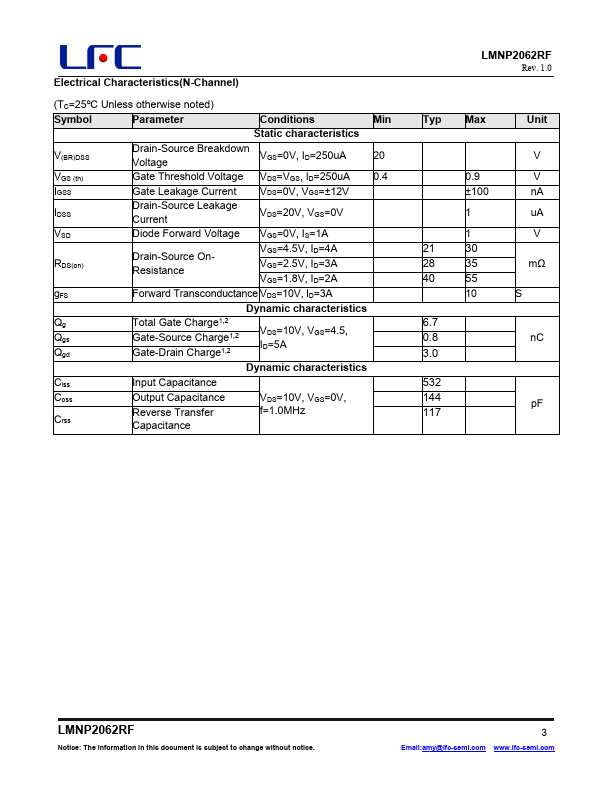

Additional preview pages of the LMNP2062RF datasheet.

LMNP2062RF Product details

Description

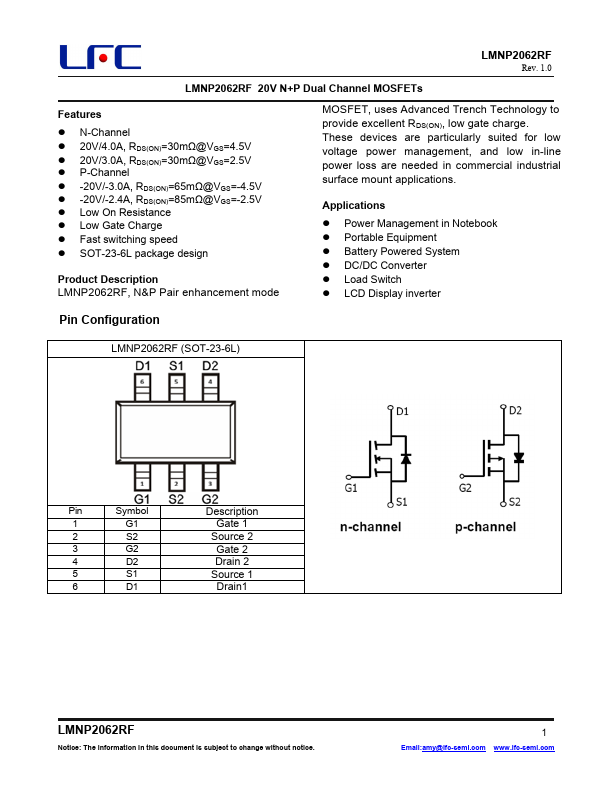

LMNP2062RF, N&P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge.These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications.Applications Power Management in Notebook Portable Equipment Battery Powered System DC/DC Converter Load Switch LCD Display inverter Pin Configuration LMNP2062RF (SOT-23-6L)

Features

N-Channel.
20V/4.0A, RDS(ON)=30mΩ@VGS=4.5V.
20V/3.0A, RDS(ON)=30mΩ@VGS=2.5V.
P-Channel.
-20V/-3.0A, RDS(ON)=65mΩ@VGS=-4.5V.
-20V/-2.4A, RDS(ON)=85mΩ@VGS=-2.5V.
Low On Resistance.
Low Gate Charge.
Fast switching speed.
SOT-23-6L package design Product.
