LMNNBSS139T - Dual N-Channel Enhancement Mode MOSFET

The LMNNBSS139T by LFC semi is a Dual N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

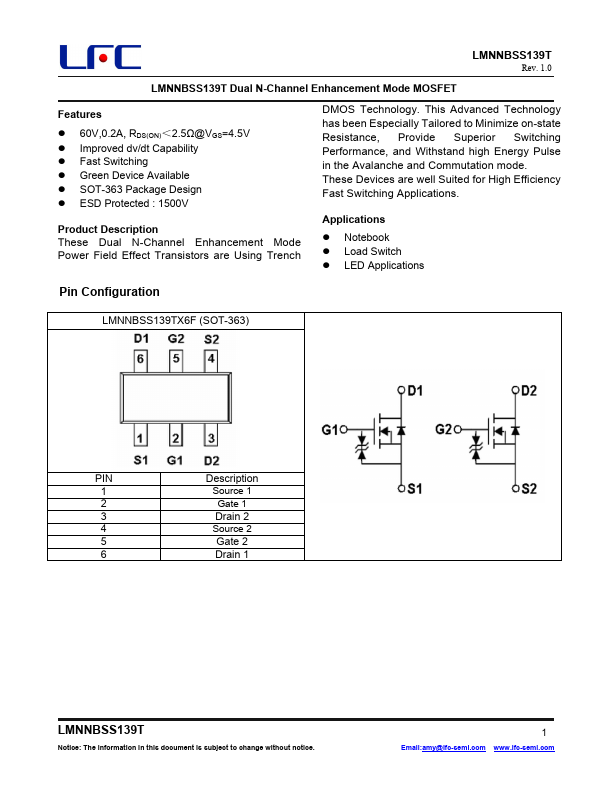

Official preview page of the LMNNBSS139T Dual N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMNNBSS139T
Manufacturer LFC semi
File Size 668.76 KB
Description Dual N-Channel Enhancement Mode MOSFET
Datasheet download datasheet LMNNBSS139T-LFCsemi.pdf

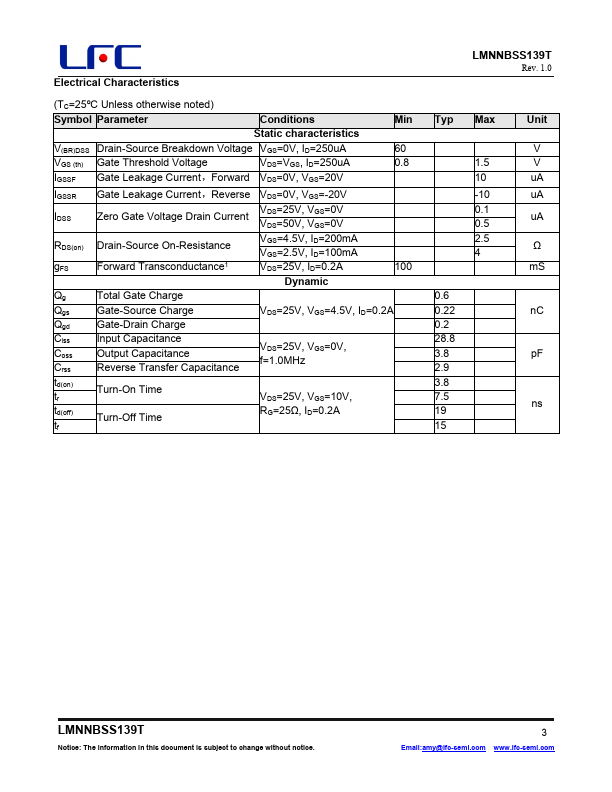

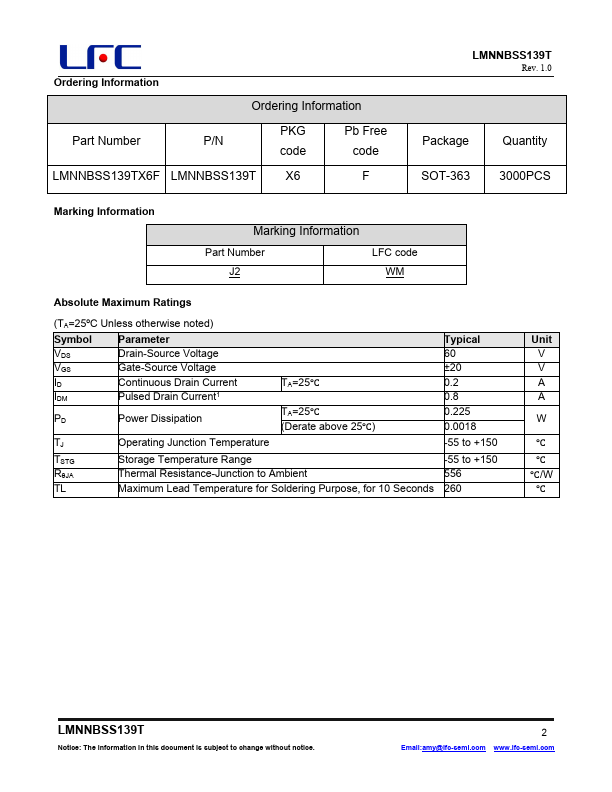

Additional preview pages of the LMNNBSS139T datasheet.

LMNNBSS139T Product details

Description

These Dual N-Channel Enhancement Mode Power Field Effect Transistors are Using Trench DMOS Technology.This Advanced Technology has been Especially Tailored to Minimize on-state Resistance, Provide Superior Switching Performance, and Withstand high Energy Pulse in the Avalanche and Commutation mode.These Devices are well Suited for High Efficiency Fast Switching Applications.Applications Notebook Load Switch LED Applications Pin Configuration LMNNBSS139TX6F (SOT-363) PIN

Features
