LMNN3218SF - 30V Dual N-Channel MOSFET

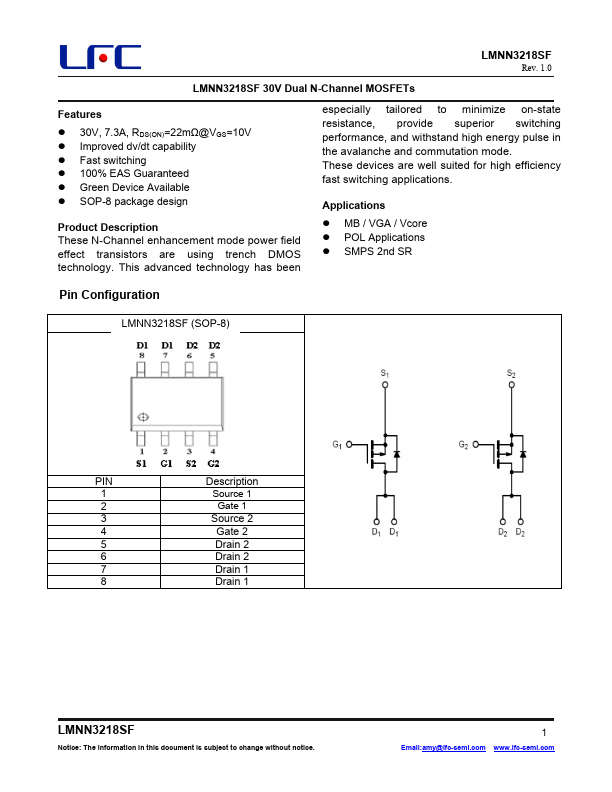

The LMNN3218SF by LFC semi is a 30V Dual N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMNN3218SF
Manufacturer	LFC semi
File Size	850.26 KB
Description	30V Dual N-Channel MOSFET
Datasheet	LMNN3218SF-LFCsemi.pdf

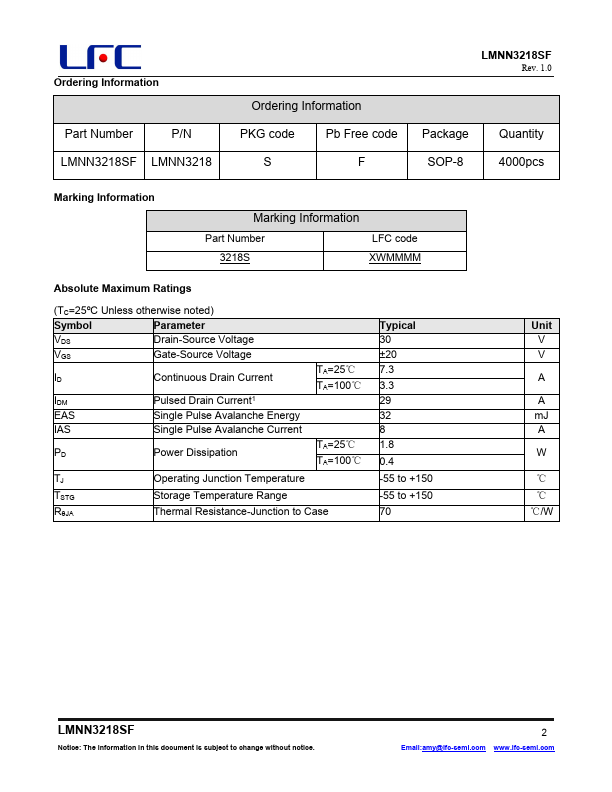

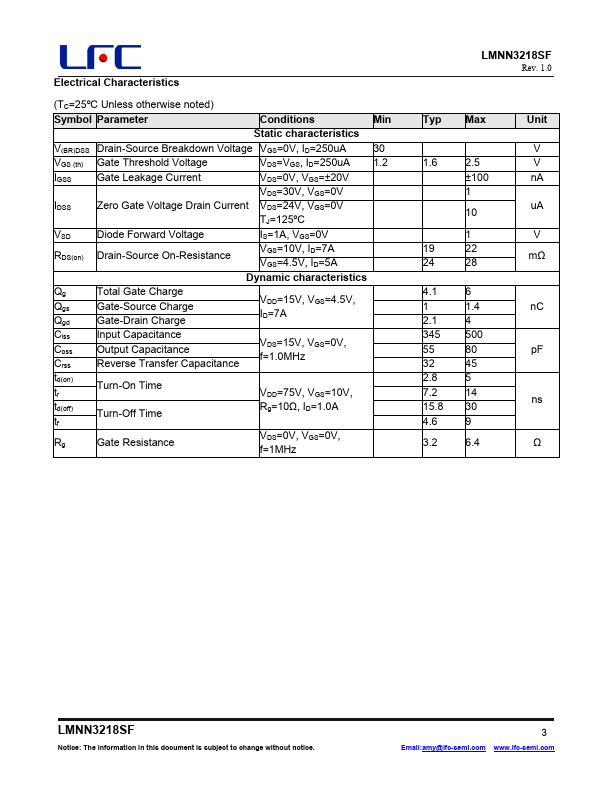

Additional preview pages of the LMNN3218SF datasheet.

LMNN3218SF Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. MB / VGA / Vcore POL Applications SMPS 2nd SR Pin Configuration LMNN3218SF (SOP-8) PIN De

Features

30V, 7.3A, RDS(ON)=22mΩ@VGS=10V.
Improved dv/dt capability.
Fast switching.
100% EAS Guaranteed.
Green Device Available.
SOP-8 package design Product.
