LMN7002KAF - 60V N-Channel Enhancement Mode MOSFET

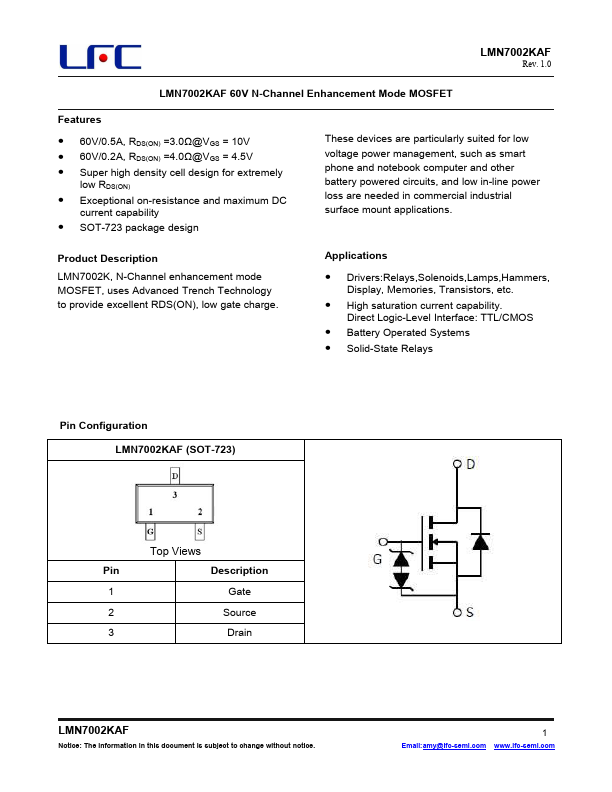

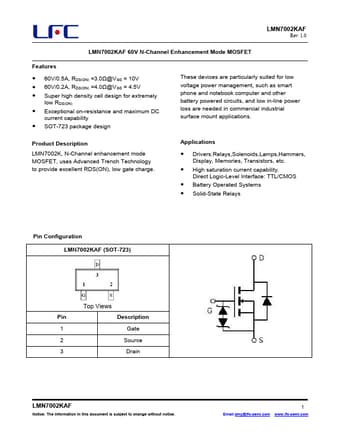

The LMN7002KAF by LFC semi is a 60V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

LMN7002KAF 60V N-Channel Enhancement Mode MOSFET by LFC semi - Datasheet Preview — Official preview page of the **LMN7002KAF** 60V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number	LMN7002KAF
Manufacturer	LFC semi
File Size	428.37 KB
Description	60V N-Channel Enhancement Mode MOSFET
Datasheet	LMN7002KAF-LFCsemi.pdf

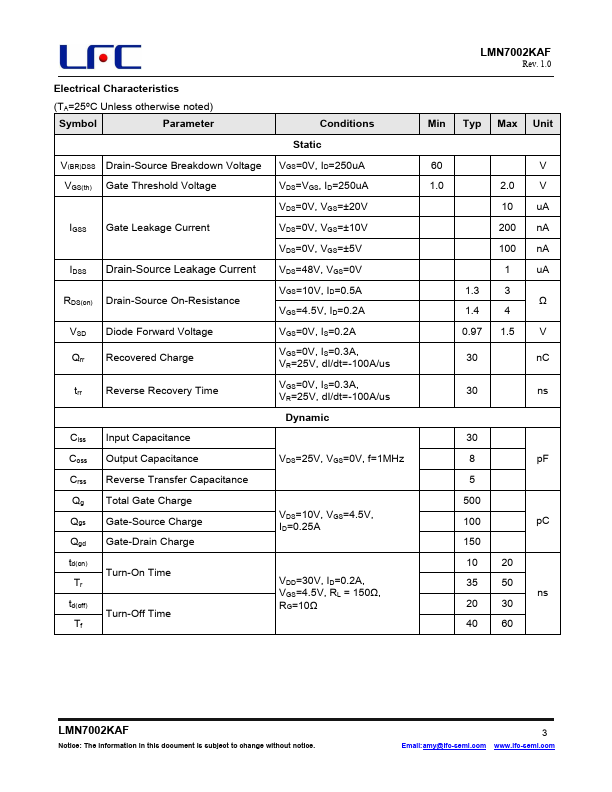

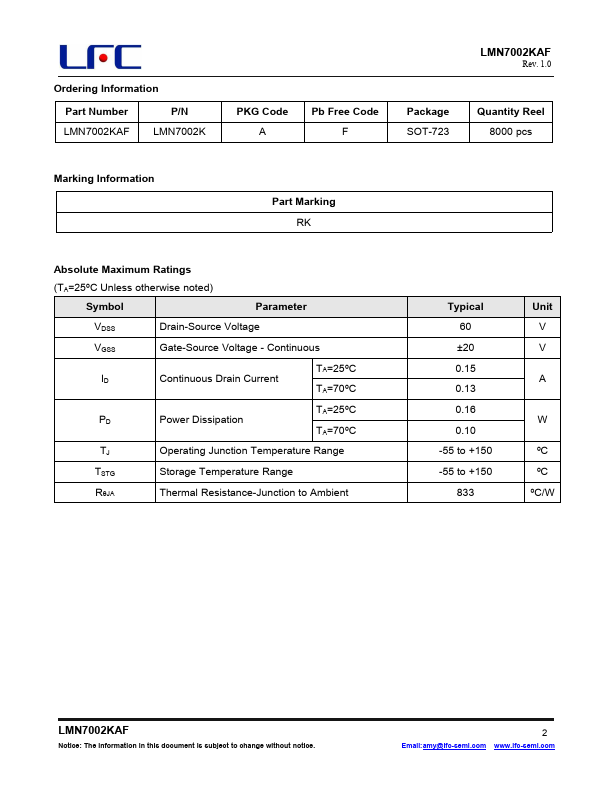

Additional preview pages of the LMN7002KAF datasheet.

LMN7002KAF Product details

Description

LMN7002K, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Drivers:Relays,Solenoids,Lamps,Hammers, Display, Memories, Transistors, etc. High saturation current capability. Battery Operated Systems Solid-State Relays Pin Configuration LMN7002KAF (SOT-723) Top Views Pin Description 1 Gate 2 Source 3 Drain LMN7002KAF Notice: The information in this

Features

60V/0.5A, RDS(ON) =3.0Ω@VGS = 10V.
60V/0.2A, RDS(ON) =4.0Ω@VGS = 4.5V.
Super high density cell design for extremely low RDS(ON).
Exceptional on-resistance and maximum DC current capability.
SOT-723 package design These devices are particularly suited for low voltage power management, such as smart phone and notebook computer and other battery powered circuits, and low in-line power loss are needed in commercial industrial surface mount.
