LMN7002K - 60V N-Channel Enhancement Mode MOSFET

The LMN7002K by LFC semi is a 60V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

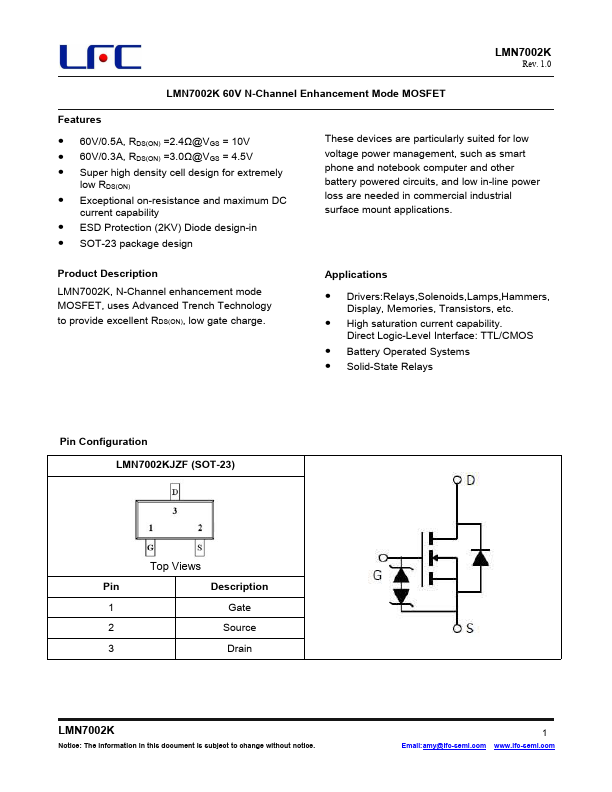

Official preview page of the LMN7002K 60V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMN7002K
Manufacturer LFC semi
File Size 709.90 KB
Description 60V N-Channel Enhancement Mode MOSFET
Datasheet download datasheet LMN7002K-LFCsemi.pdf

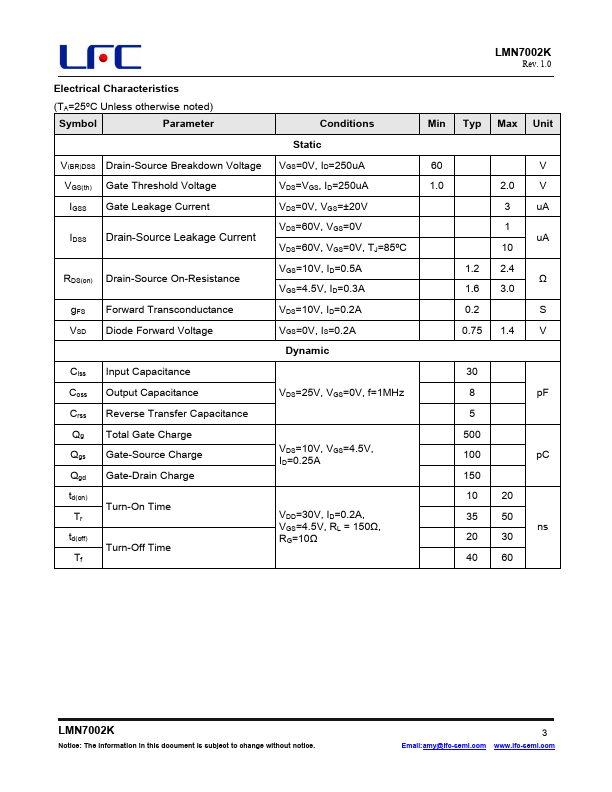

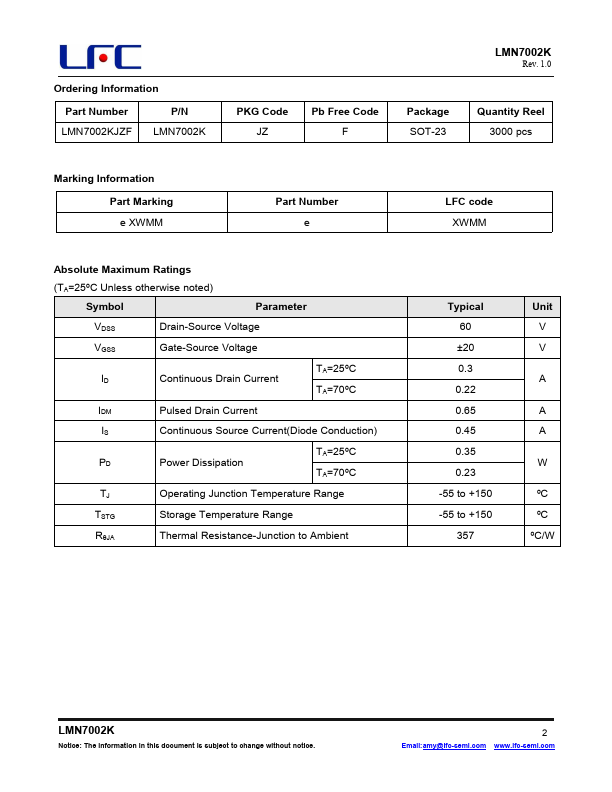

Additional preview pages of the LMN7002K datasheet.

LMN7002K Product details

Description

LMN7002K, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Drivers:Relays,Solenoids,Lamps,Hammers, Display, Memories, Transistors, etc. High saturation current capability. Battery Operated Systems Solid-State Relays Pin Configuration LMN7002KJZF (SOT-23) Top Views Pin Description 1 Gate 2 Source 3 Drain LMN7002K Notice: The information in this d

Features
