LMN3660EX5F, LMN3660EX7F - 30V N-Channel Enhancement Mode MOSFET

The LMN3660EX5F by LFC semi is a 30V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the LMN3660EX5F 30V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMN3660EX5F, LMN3660EX7F
Manufacturer LFC semi
File Size 675.86 KB
Description 30V N-Channel Enhancement Mode MOSFET
Datasheet download datasheet LMN3660EX7F-LFCsemi.pdf
Note This datasheet PDF includes multiple part numbers: LMN3660EX5F, LMN3660EX7F.
Please refer to the document for exact specifications by model.

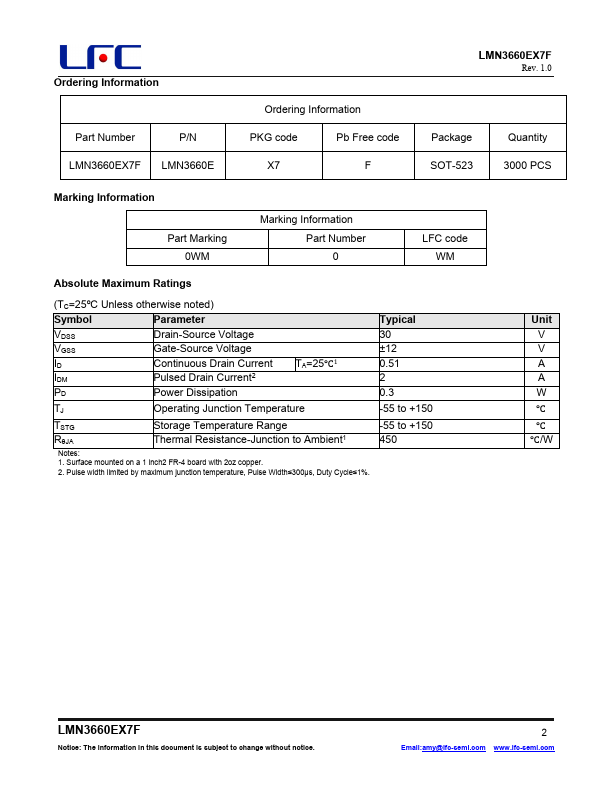

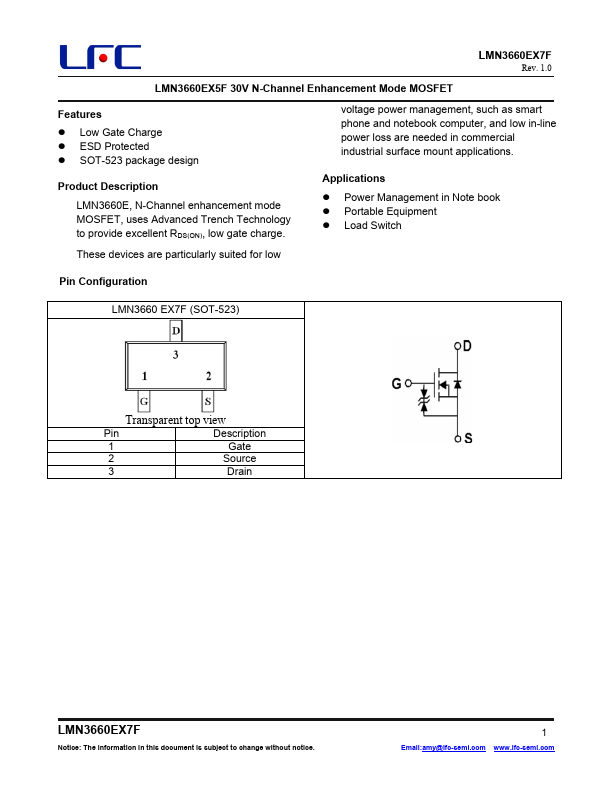

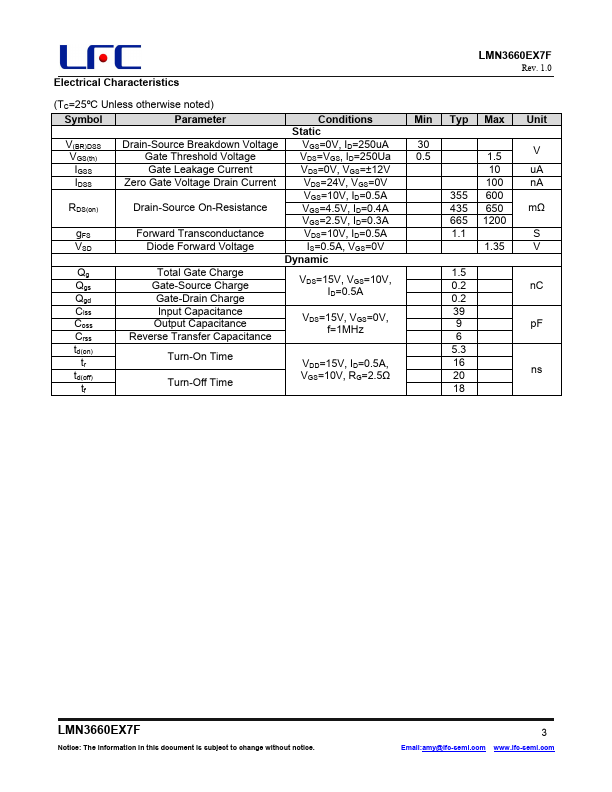

Additional preview pages of the LMN3660EX5F datasheet.

LMN3660EX5F Product details

Description

LMN3660E, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Power Management in Note book Portable Equipment Load Switch These devices are particularly suited for low Pin Configuration LMN3660 EX7F (SOT-523) Transparent top view Pin Descr

Features
