LMN3660EJZF - 30V N-Channel Enhancement Mode MOSFET

The LMN3660EJZF by LFC semi is a 30V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

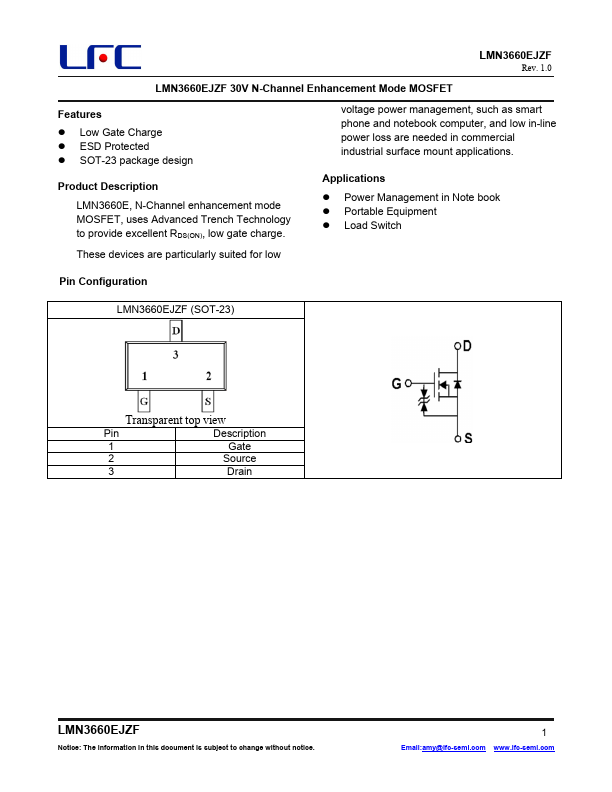

Official preview page of the LMN3660EJZF 30V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMN3660EJZF
Manufacturer LFC semi
File Size 659.31 KB
Description 30V N-Channel Enhancement Mode MOSFET
Datasheet download datasheet LMN3660EJZF-LFCsemi.pdf

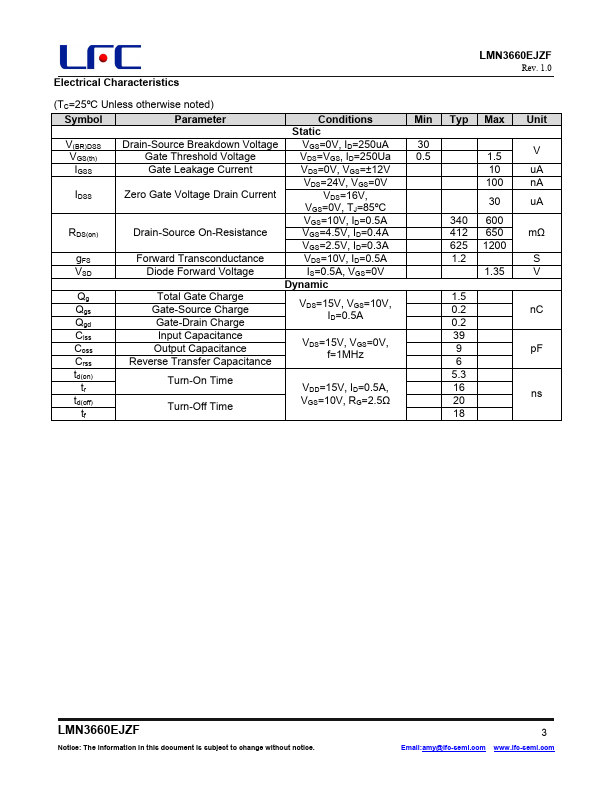

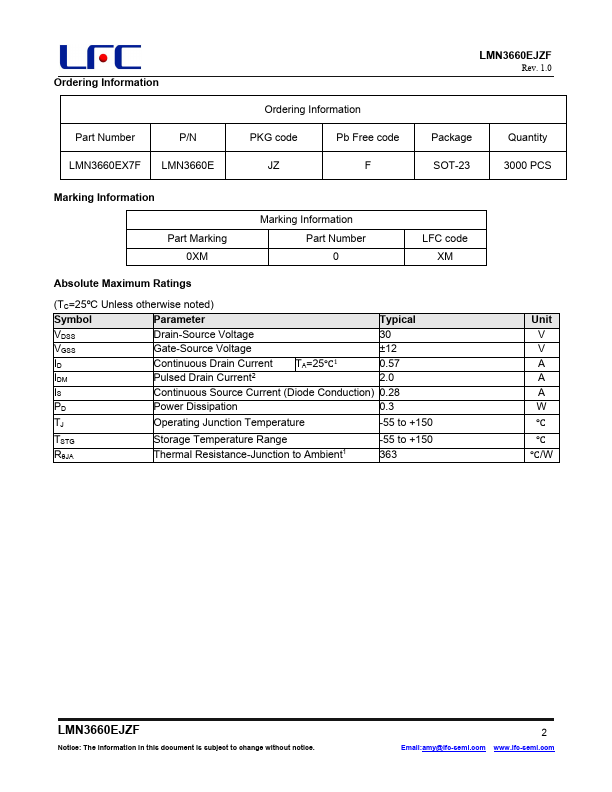

Additional preview pages of the LMN3660EJZF datasheet.

LMN3660EJZF Product details

Description

LMN3660E, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Power Management in Note book Portable Equipment Load Switch These devices are particularly suited for low Pin Configuration LMN3660EJZF (SOT-23) Transparent top view Pin Descrip

Features
