LMN3660EAF - 30V N-Channel Enhancement Mode MOSFET

The LMN3660EAF by LFC semi is a 30V N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the LMN3660EAF 30V N-Channel Enhancement Mode MOSFET datasheet (LFC semi).

Datasheet Details

Part number LMN3660EAF
Manufacturer LFC semi
File Size 601.92 KB
Description 30V N-Channel Enhancement Mode MOSFET
Datasheet download datasheet LMN3660EAF-LFCsemi.pdf
Additional preview pages of the LMN3660EAF datasheet.

LMN3660EAF Product details

Description

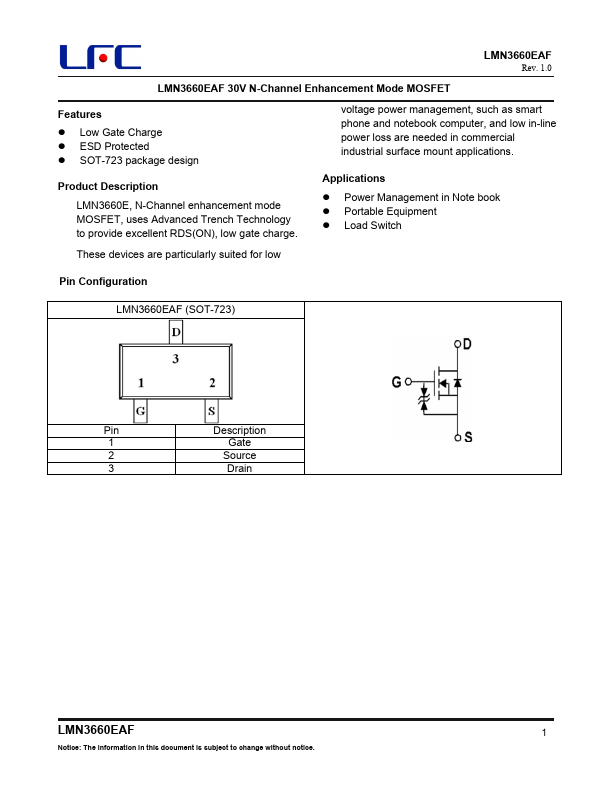

LMN3660E, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. Power Management in Note book Portable Equipment Load Switch These devices are particularly suited for low Pin Configuration LMN3660EAF (SOT-723) Pin Description 1 Gate 2 Sour

Features
