LMN3368AXF - 30V N-Channel Enhancement Mode MOSFET

Name: LMN3368AXF
SKU: LMN3368AXF-1583473

📥 Download Datasheet

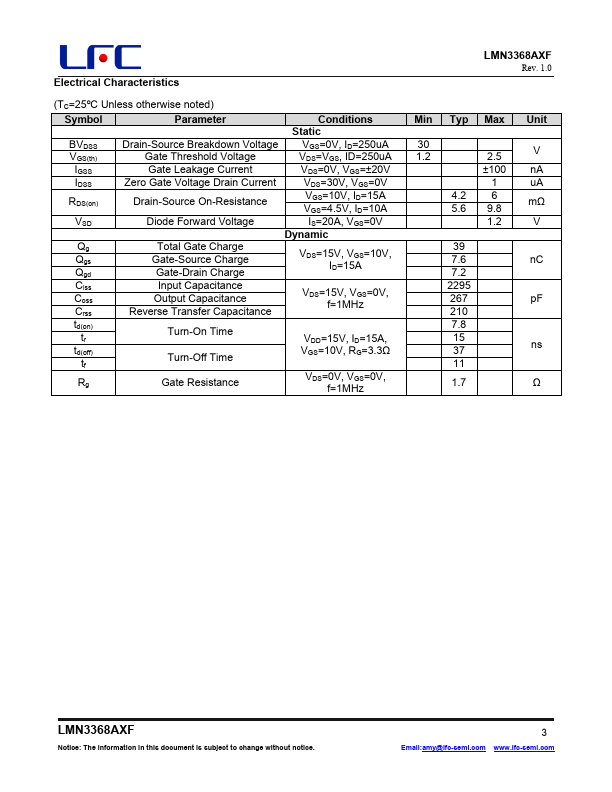

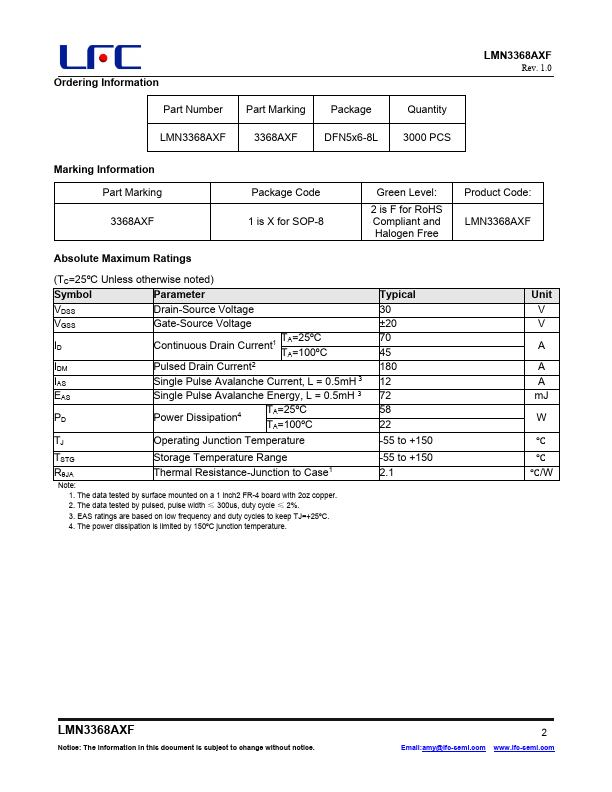

LMN3368AXF Datasheet Preview — Preview of LMN3368AXF PDF

Datasheet Details

Part number	LMN3368AXF
Manufacturer	LFC semi
File Size	596.95 KB
Description	30V N-Channel Enhancement Mode MOSFET
Datasheet	LMN3368AXF-LFCsemi.pdf

LMN3368AXF Product details

Description

The N-Channel enhancement mode power field effect transistor is using trench DMOS technology. MB / VGA / Vcore POL SMPS 2nd SR Pin Configuration LMN3368AXF (DFN5x6-8L) PIN 1,2,3 4 5,6,7,8 Des

Features

RDS(ON) =6mΩ @ VGS=10V.
RDS(ON) =9.8mΩ @ VGS=4.5V.
DFN5x6-8L Package Product.
