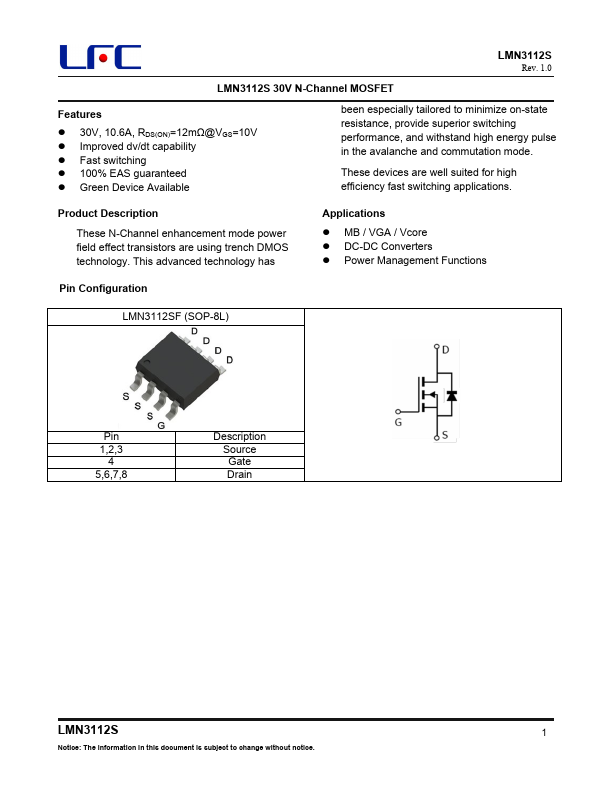

LMN3112S - 30V N-Channel MOSFET

LMN3112S Datasheet Preview — Preview of LMN3112S PDF

Datasheet Details

Part number	LMN3112S
Manufacturer	LFC semi
File Size	467.78 KB
Description	30V N-Channel MOSFET
Datasheet	LMN3112S-LFCsemi.pdf

LMN3112S Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. MB / VGA / Vcore DC-DC Converters Power Management Functions Pin Configuration LMN3112SF (SOP-8L) Pin 1,2,3 4 5,6,7,8 Description Source Gate Drain LMN3112S 1 Notice: The information in this document is subject to change without notice.Ordering Information Part Number LMN3112SF P/N LMN3112 LMN3112S Rev.1.0 Ordering Informatio

Features

30V, 10.6A, RDS(ON)=12mΩ@VGS=10V.
Improved dv/dt capability.
Fast switching.
100% EAS guaranteed.
Green Device Available been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching.
