LMN3320XF - 30V N-Channel MOSFET

LMN3320XF Datasheet Preview — Preview of LMN3320XF PDF

Datasheet Details

Part number	LMN3320XF
Manufacturer	LFC semi
File Size	568.61 KB
Description	30V N-Channel MOSFET
Datasheet	LMN3320XF-LFCsemi.pdf

LMN3320XF Product details

Description

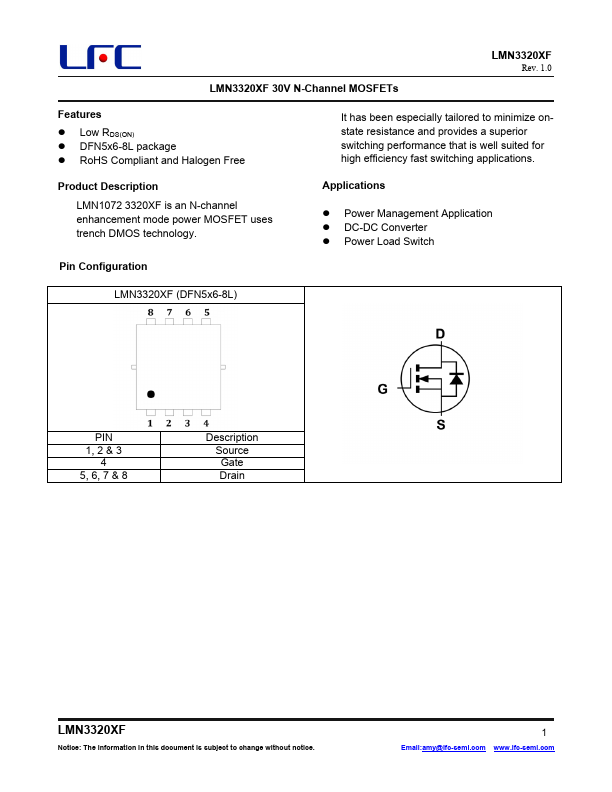

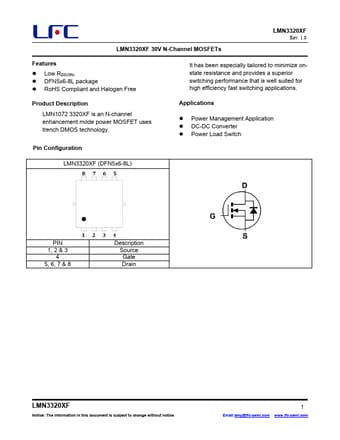

LMN1072 3320XF is an N-channel enhancement mode power MOSFET uses trench DMOS technology. Power Management Application DC-DC Converter Power Load Switch Pin Configuration LMN3320XF (DFN5x6-8L) PIN 1, 2 & 3 4 5, 6, 7 & 8 Description Source Gate Drain LMN3320XF Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information Part Number LMN3320XF P/N LMN3320 LMN3320XF Rev.1.0 Ord

Features

Low RDS(ON).
DFN5x6-8L package.
RoHS Compliant and Halogen Free It has been especially tailored to minimize onstate resistance and provides a superior switching performance that is well suited for high efficiency fast switching.
