LMN3112XF - 30V N-Channel MOSFET

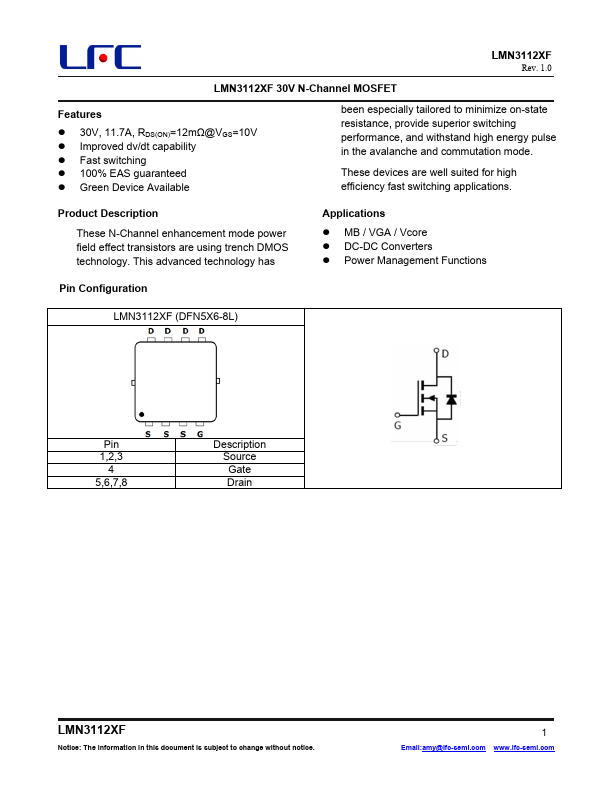

The LMN3112XF by LFC semi is a 30V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	LMN3112XF
Manufacturer	LFC semi
File Size	451.56 KB
Description	30V N-Channel MOSFET
Datasheet	LMN3112XF-LFCsemi.pdf

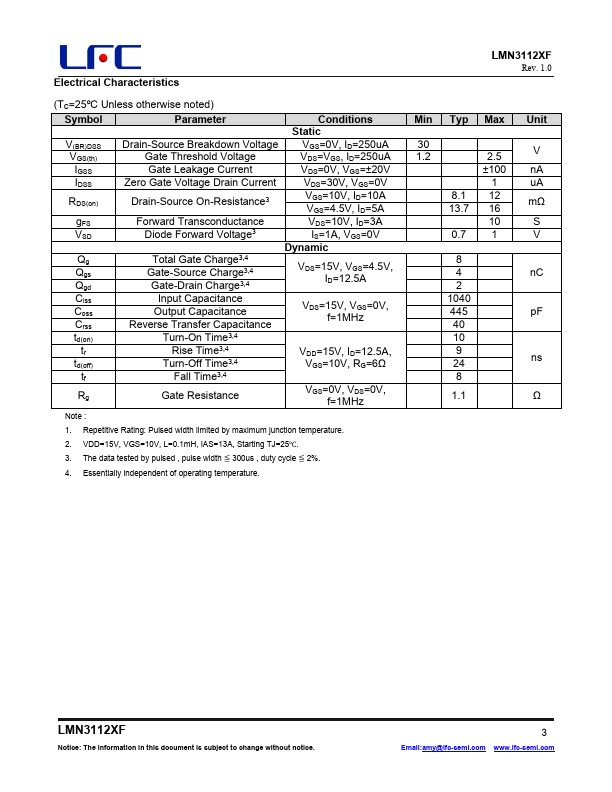

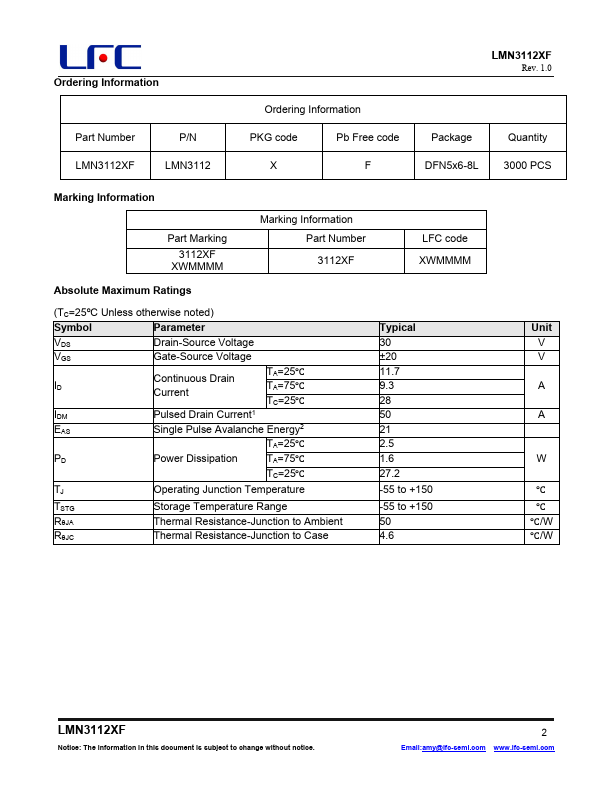

Additional preview pages of the LMN3112XF datasheet.

LMN3112XF Product details

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. MB / VGA / Vcore DC-DC Converters Power Management Functions Pin Configuration LMN3112XF (DFN5X6-8L) Pin 1,2,3 4 5,6,7,8 Description Source Gate Drain LMN3112XF Notice: The information in this document is subject to change without notice.1 Email:amy@lfc-semi.com www.lfc-semi.com Ordering Information Part Number LMN3112XF P/N LMN3

Features

30V, 11.7A, RDS(ON)=12mΩ@VGS=10V.
Improved dv/dt capability.
Fast switching.
100% EAS guaranteed.
Green Device Available been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching.
