LC2333 - 3A Synchronous Step-Down Converter

Datasheet Summary

Description

The LC2333 is a fully integrated, high-efficiency 3A synchronous rectified step-down converter.

The LC2333 operates at high efficiency over a wide output current load range.

Features

High efficiency: up to 96%.
500KHz frequency operation.
Up to 3A output current.
No schottky diode required.
4.5V to 16V input voltage range.
0.8V reference.
Slope compensated current mode control for excellent line and load transient response.
Integrated internal compensation.
Stable with low ESR ceramic output capacitors.
Over current protection with hiccup-mode.
Over temperature protection.
Inrush current limit and soft start.

Datasheet Details

Part number	LC2333
Manufacturer	LEADCHIP
File Size	1.12 MB
Description	3A Synchronous Step-Down Converter
Datasheet	LC2333 Datasheet

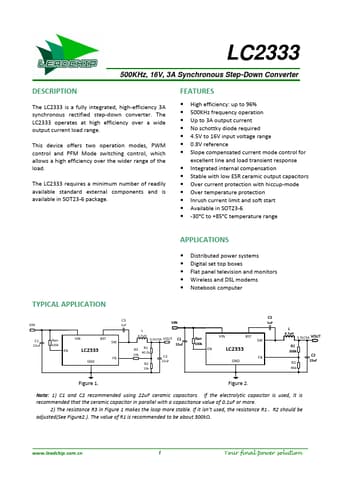

Additional preview pages of the LC2333 datasheet.
