LC2333B - 16V 3A Synchronous PFM/PWM Buck Converter

Datasheet Summary

Description

The LC2333B is a high efficiency current-mode synchronous, 16V/3A buck converter.

Its input voltage ranges from 4.2V to 16V and it provides an adjustable regulated output voltage from 1V to 12V while delivering up to 3A of output current.

Features

  • High Efficiency: Up to 96%.
  • 500KHz Frequency Operation.
  • 3A Output Current.
  • No Schottky Diode Required.
  • 4.2V to 16V Input Voltage Range.
  • 0.923V Reference.
  • Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
  • Integrated internal compensation.
  • Stable with Low ESR Ceramic Output Capacitors.
  • Over Current Protection with Hiccup-Mode.
  • Thermal Shutdown.
  • Inrush Current Limit and Soft Start.
  • Available in ES.

📥 Download Datasheet

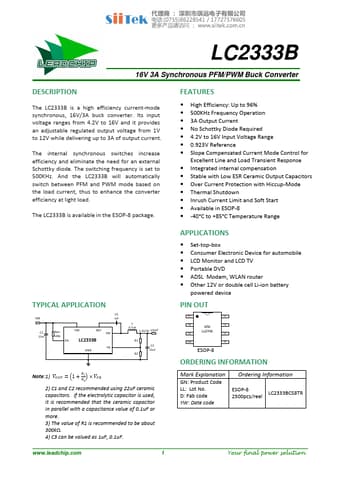

Datasheet preview – LC2333B

Datasheet Details

Part number LC2333B
Manufacturer LEADCHIP
File Size 912.91 KB
Description 16V 3A Synchronous PFM/PWM Buck Converter
Datasheet download datasheet LC2333B Datasheet
Additional preview pages of the LC2333B datasheet.

📁 Similar Datasheet

Other Datasheets by LEADCHIP
  • LC2333 - 3A Synchronous Step-Down Converter
  • LC2332B - 16V 2A Synchronous PFM/PWM Buck Converter
  • LC2332H - 2A Synchronous Step-Down Converter
  • LC2332S - 2A Synchronous Step-Down Converter
  • LC2332T - 2.5A Synchronous Step-Down Converter
  • LC2334 - 16V High Efficiency Synchronous Step-Down Converter
  • LC2335 - 2A Synchronous Step-Down Converter
  • LC2127 - 1.2A 1.5MHz 7V Synchronous Buck Converter

Full PDF Text Transcription

Click to expand full text
LC2333B 16V 3A Synchronous PFM/PWM Buck Converter DESCRIPTION The LC2333B is a high efficiency current-mode synchronous, 16V/3A buck converter. Its input voltage ranges from 4.2V to 16V and it provides an adjustable regulated output voltage from 1V to 12V while delivering up to 3A of output current. The internal synchronous switches increase efficiency and eliminate the need for an external Schottky diode. The switching frequency is set to 500KHz. And the LC2333B will automatically switch between PFM and PWM mode based on the load current, thus to enhance the converter efficiency at light load. The LC2333B is available in the ESOP-8 package. FEATURES  High Efficiency: Up to 96%  500KHz Frequency Operation  3A Output Current  No Schottky Diode Required  4.
