LC2332H - 2A Synchronous Step-Down Converter

Datasheet Summary

Description

The LC2332H is a fully integrated, high-efficiency 2A synchronous rectified step-down converter.

The LC2332H operates at high efficiency over a wide output current load range.

Features

High Efficiency: Up to 96%.
1MHz Frequency Operation.
2A Output Current.
No Schottky Diode Required.
4.2V to 18V Input Voltage Range.
0.8V Reference.
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
Integrated internal compensation.
Stable with Low ESR Ceramic Output Capacitors.
Over Current Protection with Hiccup-Mode.
Thermal Shutdown.
Inrush Current Limit and Soft Start.
Available in SOT23-.

Datasheet Details

Part number	LC2332H
Manufacturer	LEADCHIP
File Size	796.77 KB
Description	2A Synchronous Step-Down Converter
Datasheet	LC2332H Datasheet

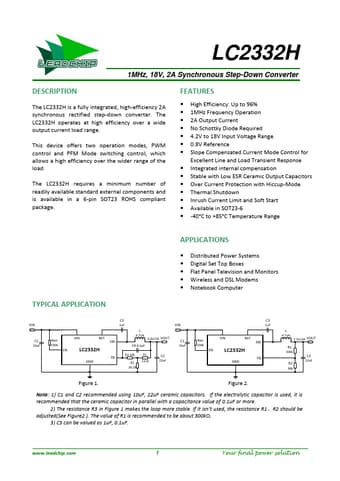

Additional preview pages of the LC2332H datasheet.
