LC2332T Datasheet PDF - LEADCHIP 2.5A Synchronous Step-Down Converter Specs

LC2332T - 2.5A Synchronous Step-Down Converter

Datasheet Summary

Description

The LC2332T is a fully integrated, high-efficiency 2.5A synchronous rectified step-down converter.

The LC2332T operates at high efficiency over a wide output current load range.

Features

High Efficiency: Up to 96%.
500KHz Frequency Operation.
2.5A Output Current.
No Schottky Diode Required.
4.5V to 18V Input Voltage Range.
0.8V Reference.
Slope Compensated Current Mode Control for Excellent Line and Load Transient Response.
Integrated internal compensation.
Stable with Low ESR Ceramic Output Capacitors.
Over Current Protection with Hiccup-Mode.
Thermal Shutdown.
Inrush Current Limit and Soft Start.
Available in SO.

Datasheet Details

Part number	LC2332T
Manufacturer	LEADCHIP
File Size	795.66 KB
Description	2.5A Synchronous Step-Down Converter
Datasheet	LC2332T Datasheet

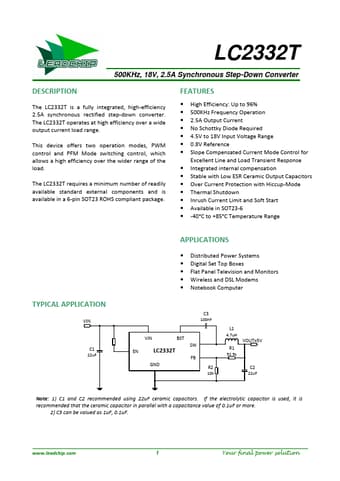

Additional preview pages of the LC2332T datasheet.

📁 Similar Datasheet

LC230EUE-SEA1 - Full HD TFT LCD (LG)

LC230EUE-TDA1 - Full HD TFT LCD (LG)

LC230W01-A2 - LCD (LG)

LC230W01-A2K2 - WXGA TFT LCD (LG)

LC230W02-A5K1 - LCD Module (LG)

LC230W02-A5K4 - WXGA TFT LCD (LG)

LC230WX3 - Liquid Crystal Display (LG Semicon)

LC230WX3-SLA1 - LCD Module (LG)

LC2319 - 2A Power MOSFET DC-DC Converter (JinFengDa)

LC238LF1L - TFT LCD (PANDA)

Full PDF Text Transcription

Click to expand full text

LC2332T 500KHz, 18V, 2.5A Synchronous Step-Down Converter DESCRIPTION The LC2332T is a fully integrated, high-efficiency 2.5A synchronous rectified step-down converter. The LC2332T operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The LC2332T requires a minimum number of readily available standard external components and is available in a 6-pin SOT23 ROHS compliant package. FEATURES  High Efficiency: Up to 96%  500KHz Frequency Operation  2.5A Output Current  No Schottky Diode Required  4.5V to 18V Input Voltage Range  0.

Published: Oct 4, 2024 |
