HS-4424EH, HS-4424RH Non-Inverting Power MOSFET Drivers

HS-4424EH Description

Datasheet HS-4424RH, HS-4424EH, HS-4424BRH, HS-4424BEH Radiation Hardened Dual, Non-Inverting Power MOSFET Drivers The radiation hardened HS-4424RH,.

HS-4424EH Features

* Electrically screened to DESC SMD # 5962-99560
* QML qualified per MIL-PRF-38535 requirements
* Radiation environment ○ High dose rate (50-300rad(Si)/s): 300krad(Si) ○ Latch-up immune ○ Low dose rate (0.01rad(Si)/s): 50krad(Si) (EH products only)
* IPEAK: >2A (min)

HS-4424EH Applications

* The high current outputs minimize power losses in MOSFETs by rapidly charging and discharging the gate capacitance. The output stage incorporates a low voltage lockout circuit that puts the outputs into a three-state mode when the supply voltage drops below 10V for the HS-4424RH, HS-4424EH and 7.5V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HS-4424EH, HS-4424RH. Please refer to the document for exact specifications by model.

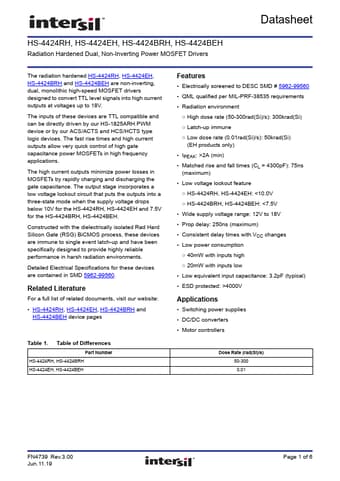

datasheet Preview Page 2 datasheet Preview Page 3
