HS-4423BRH Radiation Hardened Dual/ Inverting Power MOSFET Drivers

Intersil Corporation

Description

HS-4423RH, HS-4423BRH Data Sheet June 1999 File Number 4564.4 Radiation Hardened Dual, Inverting Power MOSFET Drivers The Radiation Hardened HS-4423R.
only.

📥 Download Datasheet

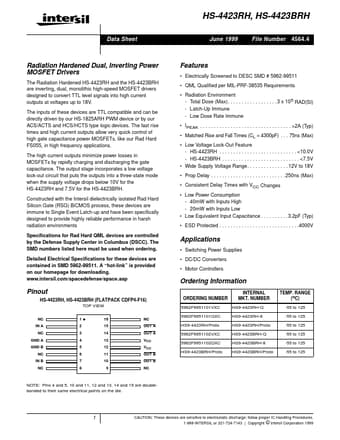

HS-4423BRH Datasheet Preview — Preview of HS-4423BRH PDF

Datasheet Specifications

Part number: HS-4423BRH
Manufacturer: Intersil Corporation
File Size: 56.67 KB
Datasheet: HS-4423BRH_IntersilCorporation.pdf
Description: Radiation Hardened Dual/ Inverting Power MOSFET Drivers

Features

* Electrically Screened to DESC SMD # 5962-99511
* QML Qualiﬁed per MIL-PRF-38535 Requirements
* Radiation Environment - Total Dose (Max)
* . . . 3 x 105 RAD(SI) - Latch-Up Immune - Low Dose Rate Immune
* IPEAK

Applications

* The high current outputs minimize power losses in MOSFETs by rapidly charging and discharging the gate capacitance. The output stage incorporates a low voltage lock-out circuit that puts the outputs into a three-state mode when the supply voltage drops below 10V for the HS-4423RH and 7.5V for the H
