HS-4423RH Radiation Hardened Dual/ Inverting Power MOSFET Drivers

HS-4423RH Description

HS-4423RH, HS-4423BRH Data Sheet June 1999 File Number 4564.4 Radiation Hardened Dual, Inverting Power MOSFET Drivers The Radiation Hardened HS-4423R.
only.

HS-4423RH Features

* Electrically Screened to DESC SMD # 5962-99511
* QML Qualified per MIL-PRF-38535 Requirements
* Radiation Environment - Total Dose (Max)
* . . . 3 x 105 RAD(SI) - Latch-Up Immune - Low Dose Rate Immune
* IPEAK

HS-4423RH Applications

* The high current outputs minimize power losses in MOSFETs by rapidly charging and discharging the gate capacitance. The output stage incorporates a low voltage lock-out circuit that puts the outputs into a three-state mode when the supply voltage drops below 10V for the HS-4423RH and 7.5V for the H

📥 Download Datasheet

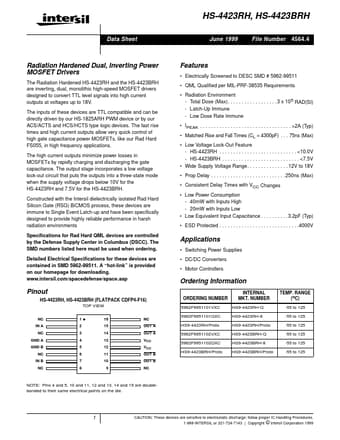

Preview of HS-4423RH PDF
datasheet Preview Page 2

Datasheet Details

Part number
HS-4423RH
Manufacturer
Intersil Corporation
File Size
56.67 KB
Datasheet
HS-4423RH_IntersilCorporation.pdf
Description
Radiation Hardened Dual/ Inverting Power MOSFET Drivers
