HS-4424DEH, HS-4424DRH Noninverting Power MOSFET Radiation Hardened Driver

HS-4424DEH Description

DATASHEET HS-4424DRH, HS-4424DEH Dual, Noninverting Power MOSFET Radiation Hardened Drivers FN8747 Rev 3.00 Jan 12, 2021 The radiation hardened HS-.
PIN NUMBER 1, 3, 6, 8, 9, 16 2 4 5 7 10, 11 12, 13 14, 15 PIN NAME NC IN A GND A GND B IN B OUT B VCC OUT A VCC EQUIVALENT ESD CIRCUIT NA Circuit.

HS-4424DEH Features

* Electrically screened to DLA SMD# 5962-99560
* QML qualified per MIL-PRF-38535 requirements
* Latch-up immune
* Radiation acceptance testing - HS-4424DRH - High dose rate (50-300rad(Si)/s)
* . 300krad(Si)
* Radiation acceptance testing - HS-44

HS-4424DEH Applications

* The high current outputs minimize power losses in MOSFETs by rapidly charging and discharging the gate capacitance. The output stage incorporates a low voltage lockout circuit that puts the outputs into a three-state mode when the supply voltage is below its Undervoltage Lockout (UVLO) threshold v

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HS-4424DEH, HS-4424DRH. Please refer to the document for exact specifications by model.

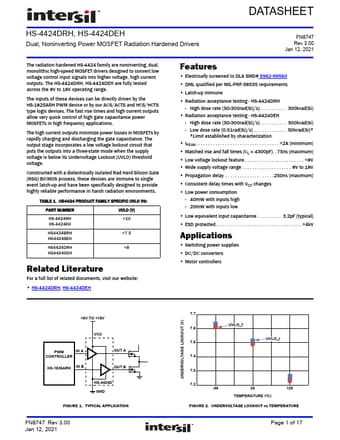

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS-4424DEH, HS-4424DRH
Manufacturer
Intersil
File Size
678.85 KB
Datasheet
HS-4424DRH-Intersil.pdf
Description
Noninverting Power MOSFET Radiation Hardened Driver
Note
This datasheet PDF includes multiple part numbers: HS-4424DEH, HS-4424DRH.
Please refer to the document for exact specifications by model.
