ISL7119RH Datasheet - Intersil Corporation

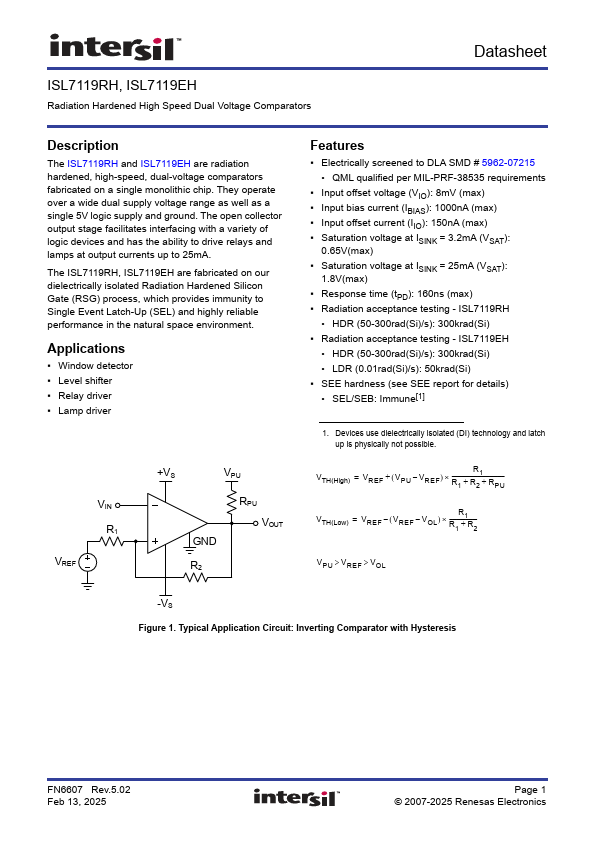

ISL7119RH Radiation Hardened High Speed Dual Voltage Comparator

The ISL7119RH and ISL7119EH are radiation hardened, high-speed, dual-voltage comparators fabricated on a single monolithic chip. They operate over a wide dual supply voltage range as well as a single 5V logic supply and ground. The open collector output stage facilitates interfacing with a variety o.

ISL7119RH Features

* ▪ Electrically screened to DLA SMD # 5962-07215

* QML qualified per MIL-PRF-38535 requirements ▪ Input offset voltage (VIO): 8mV (max) ▪ Input bias current (IBIAS): 1000nA (max) ▪ Input offset current (IIO): 150nA (max) ▪ Saturation voltage at ISINK = 3.2mA (VSAT): 0.65V(max) ▪ Saturation vo

ISL7119RH Datasheet (341.40 KB)
