ISL72028SEH - 3.3V Radiation Tolerant CAN Transceiver

Intersil Corporation

📥 Download Datasheet

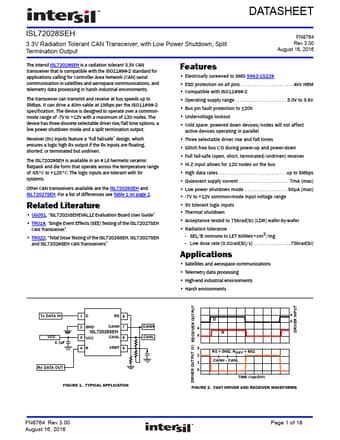

ISL72028SEH Datasheet Preview — Preview of ISL72028SEH PDF

Datasheet Details

Part number	ISL72028SEH
Manufacturer	Intersil Corporation
File Size	863.93 KB
Description	3.3V Radiation Tolerant CAN Transceiver
Datasheet	ISL72028SEH-IntersilCorporation.pdf

ISL72028SEH Product details

Description

PIN # PIN NAME FUNCTION 1 D CAN Driver Digital Input.The bus states are LOW = Dominant and HIGH = Recessive.Internally tied HIGH.2 GND Ground connection.3 VCC System power supply input (3.0V to 3.6V).The typical voltage for the device is 3.3V.4 R CAN Data Receiver Output.The bus states are LOW = Dominant and HIGH = Recessive.8 RS A resistor to GND from this pin controls the rise and fall time of the CAN output waveform.Drive RS HIGH to put into low power shutdown.7 CANH CAN bu

Features

Electrically screened to SMD 5962-15228.
ESD protection on all pins.
. . 4kV HBM.
Compatible with ISO11898-2.
Operating supply range.
. 3.0V to 3.6V.
Bus pin fault protection to ±20V.
Undervoltage lockout.
Cold spare: powered down devices/nodes will not affect active devices operating in parallel.
Three selectable driver rise and fall times.
Glitc.
