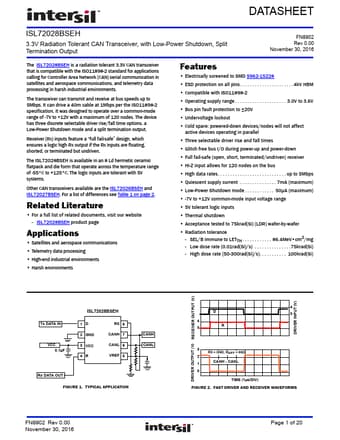

DATASHEET ISL72028BSEH 3.3V Radiation Tolerant CAN Transceiver, with Low-Power Shutdown, Split Termination Output FN8902 Rev 0.00 November 30, 2016 The ISL72028BSEH is a radiation tolerant 3.3V CAN transceiver that is compatible with the ISO11898-2 standard for applications calling for Controller Area Network (CAN) serial communication in satellites and aerospace communications, and telemetry data processing in harsh industrial environments. The transceiver can transmit and receive at bus speeds up to 5Mbps. It can drive a 40m cable at 1Mbps per the ISO11898-2 specification. It was designed to operate over a common-mode range of -7V to +12V with a maximum of 120 nodes.
