ISL7119EH - Radiation Hardened High Speed Dual Voltage Comparator

Download the ISL7119EH datasheet PDF (ISL7119RH included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for radiation hardened high speed dual voltage comparator.

Description

The ISL7119RH and ISL7119EH are radiation hardened, high-speed, dual-voltage comparators fabricated on a single monolithic chip.

They operate over a wide dual supply voltage range as well as a single 5V logic supply and ground.

Features

  • Electrically screened to DLA SMD # 5962-07215.
  • QML qualified per MIL-PRF-38535 requirements.
  • Input offset voltage (VIO): 8mV (max).
  • Input bias current (IBIAS): 1000nA (max).
  • Input offset current (IIO): 150nA (max).
  • Saturation voltage at ISINK = 3.2mA (VSAT): 0.65V(max).
  • Saturation voltage at ISINK = 25mA (VSAT): 1.8V(max).
  • Response time (tPD): 160ns (max).
  • Radiation acceptance testing - ISL7119RH.
  • HDR (50-300rad(Si)/s): 300krad(Si).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ISL7119RH_IntersilCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ISL7119RH - Radiation Hardened High Speed Dual Voltage Comparator (Intersil Corporation)
  • ISL71090SEHF25 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference (Intersil Corporation)
  • ISL7124SRH - Quad Operational Amplifiers (Intersil Corporation)
  • ISL70001SRH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator (Intersil Corporation)
  • ISL72026SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72027SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72028SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72991RH - Radiation Hardened Negative Low Dropout Adjustable Voltage Regulator (Intersil Corporation)
  • ISL73096RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
  • ISL73127RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
Other Datasheets by Intersil
  • ISL71148M - Radiation Tolerant 8-Channel 14-Bit 900/480ksps SAR ADC
  • ISL71001M - 6A Synchronous Buck Regulator
  • ISL71010B25 - 2.5V Precision Voltage Reference
  • ISL71010B50 - 5V Precision Voltage Reference
  • ISL71026M - 3.3V CAN Transceiver
  • ISL71030M - Radiation Tolerant 5V 16-Channel Analog Multiplexer
  • ISL71040M - Radiation Tolerant Low-Side GaN FET Driver
  • ISL71041M - Radiation Tolerant Single-Ended Current Mode PWM Controller

Full PDF Text Transcription

Click to expand full text

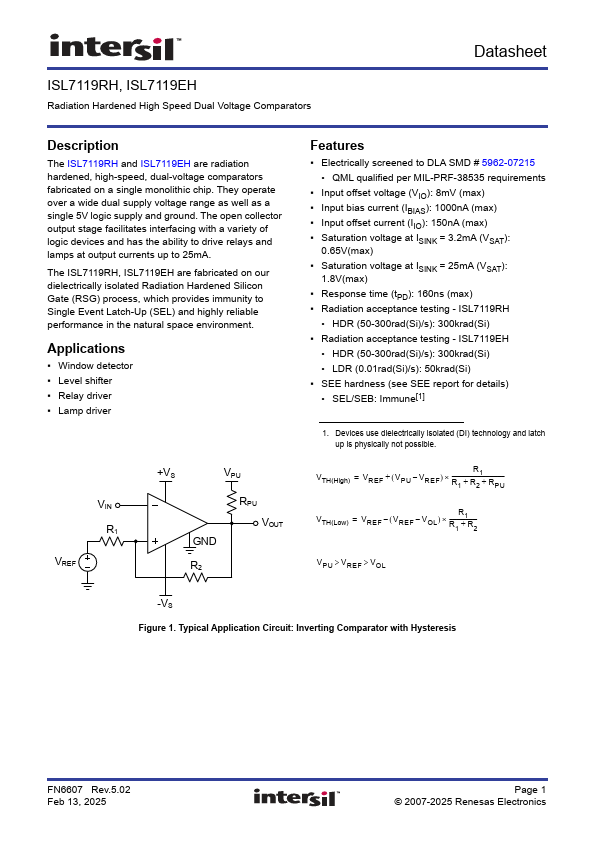

ISL7119RH, ISL7119EH Radiation Hardened High Speed Dual Voltage Comparators Datasheet Description The ISL7119RH and ISL7119EH are radiation hardened, high-speed, dual-voltage comparators fabricated on a single monolithic chip. They operate over a wide dual supply voltage range as well as a single 5V logic supply and ground. The open collector output stage facilitates interfacing with a variety of logic devices and has the ability to drive relays and lamps at output currents up to 25mA. The ISL7119RH, ISL7119EH are fabricated on our dielectrically isolated Radiation Hardened Silicon Gate (RSG) process, which provides immunity to Single Event Latch-Up (SEL) and highly reliable performance in the natural space environment.
