ISL71026M - 3.3V CAN Transceiver

Intersil

📥 Download Datasheet

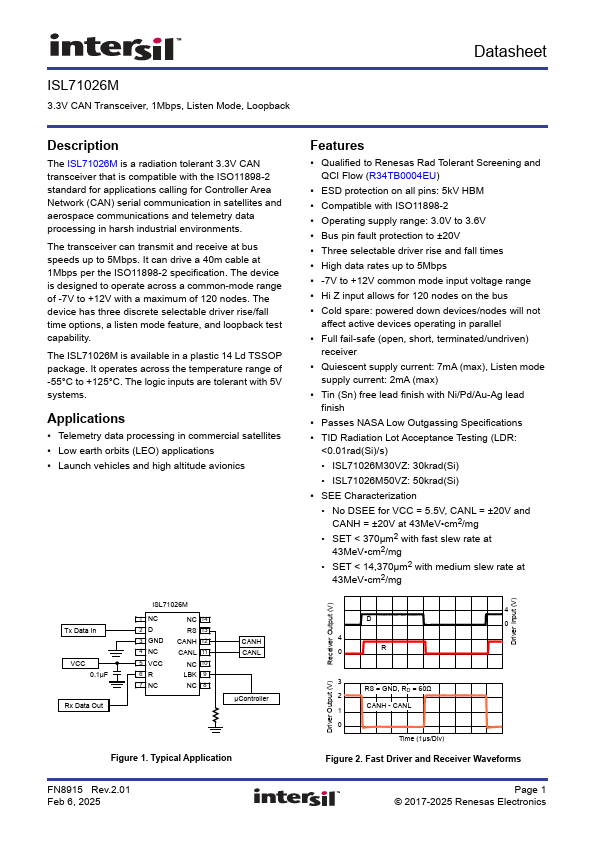

ISL71026M Datasheet Preview — Preview of ISL71026M PDF

Datasheet Details

Part number	ISL71026M
Manufacturer	Intersil
File Size	1.29 MB
Description	3.3V CAN Transceiver
Datasheet	ISL71026M-Intersil.pdf

ISL71026M Product details

Description

The ISL71026M is a radiation tolerant 3.3V CAN transceiver that is compatible with the ISO11898-2 standard for applications calling for Controller Area Network (CAN) serial communication in satellites and aerospace communications and telemetry data processing in harsh industrial environments.

Features

Qualified to Renesas Rad Tolerant Screening and QCI Flow (R34TB0004EU).
ESD protection on all pins: 5kV HBM.
Compatible with ISO11898-2.
Operating supply range: 3.0V to 3.6V.
Bus pin fault protection to ±20V.
Three selectable driver rise and fall times.
High data rates up to 5Mbps.
-7V to +12V common mode input voltage range.
Hi Z input allows for 120 nodes on the bus.
Cold spare: powered down devices/nodes will not affect active devices operati.
