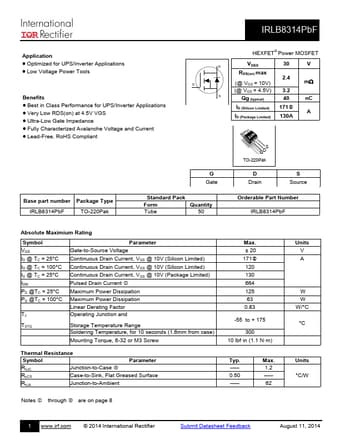

IRLB8314PbF - Power MOSFET

International Rectifier

Datasheet Details

Part number	IRLB8314PbF
Manufacturer	International Rectifier ↗
File Size	683.46 KB
Description	Power MOSFET
Datasheet	IRLB8314PbF-InternationalRectifier.pdf

release. Notes:  Repetitive rating; pulse width limited by max. junction temperature.  Limited by TJmax, starting TJ = 25°C, L = 0.067mH, RG = 50, IAS = 68A, VGS =10V.  Pulse width  400µs; duty cycle  2%.
R is measured at TJ approximately 90°C.  This value determined from sample failure population, starting TJ =25°C, L=0.5mH, RG = 50, IAS =60A, VGS =10V.  Calculated continuous current based on maximum allowable junction temperature. Bond wire current limit is 130A. Note that cu.
