IRLB8721, IRLB8721PBF Datasheet - International Rectifier

IRLB8721 Power MOSFET

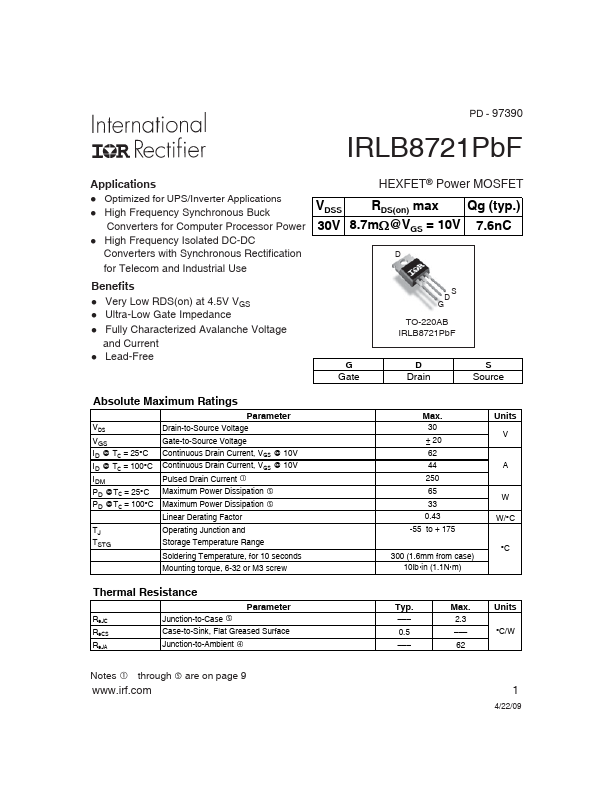

PD - 97390 IRLB8721PbF Applications l Optimized for UPS/Inverter Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use HEXFET® Power MOSFET VDSS RDS(on) max Qg (typ.) : 30V 8.7m @VGS = 10V 7.6nC D Benefits l Very Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current l Lead-Free G Gate DS G TO-220AB IRL.

IRLB8721PBF_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRLB8721, IRLB8721PBF. Please refer to the document for exact specifications by model.

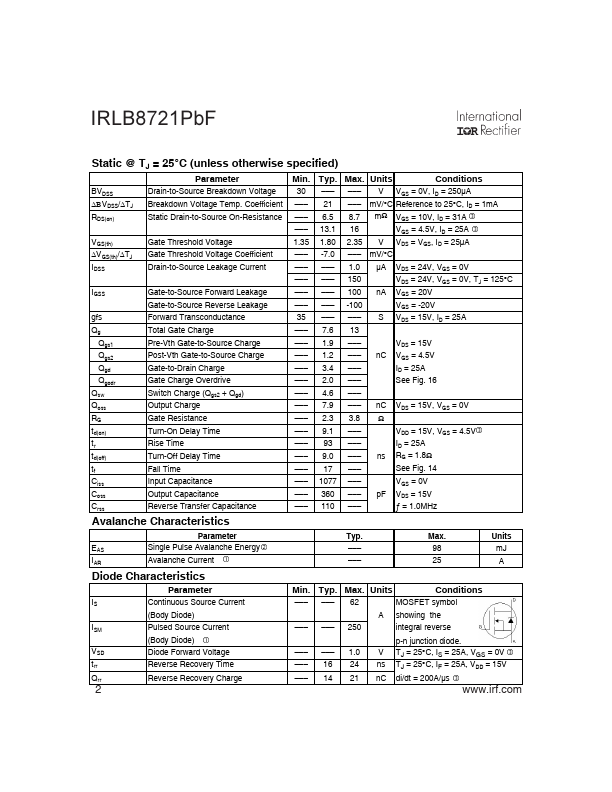

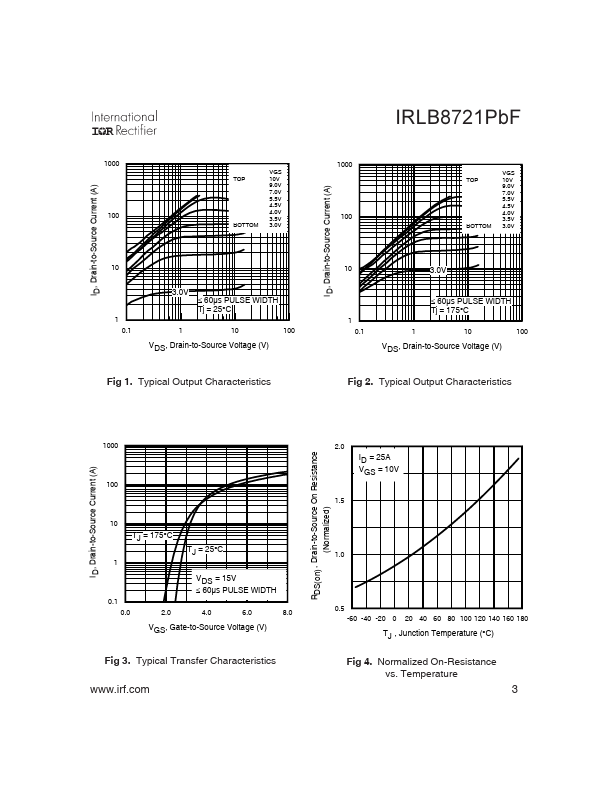

IRLB8721 Datasheet Preview Page 2 IRLB8721 Datasheet Preview Page 3

Datasheet Details

Part number:

IRLB8721, IRLB8721PBF

Manufacturer:

International Rectifier

File Size:

267.13 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRLB8721, IRLB8721PBF.
Please refer to the document for exact specifications by model.
