IRG7PH42UDPbF, IRG7PH42UD-EP - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

📥 Download Datasheet

IRG7PH42UDPbF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRG7PH42UDPbF, IRG7PH42UD-EP. Please refer to the document for exact specifications by model.

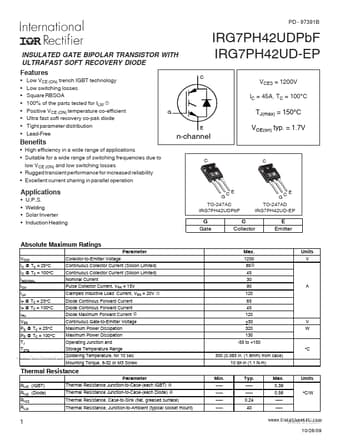

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRG7PH42UDPbF, IRG7PH42UD-EP
Manufacturer	International Rectifier ↗
File Size	466.46 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG7PH42UD-EP_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRG7PH42UDPbF, IRG7PH42UD-EP. Please refer to the document for exact specifications by model.

IRG7PH42UDPbF Product details

Features

Low VCE (ON) trench IGBT technology Low switching losses Square RBSOA 100% of the parts tested for ILM Positive VCE (ON) temperature co-efficient Ultra fast soft recovery co-pak diode Tight parameter distribution Lead-Free IRG7PH42UDPbF IRG7PH42UD-EP C VCES = 1200V IC = 45A, TC = 100°C G E TJ(max) = 150°C Benefits.
High efficiency in a wide range of.
