IRG7PH42UPbF, IRG7PH42U-EP INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

Description

INSULATED GATE BIPOLAR TRANSISTOR .

📥 Download Datasheet

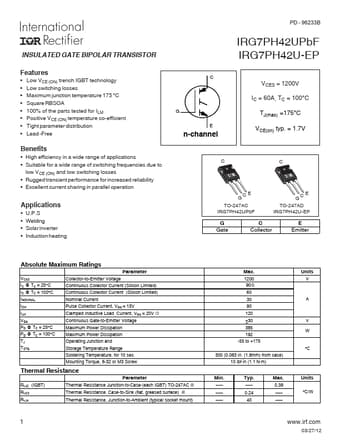

IRG7PH42UPbF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRG7PH42UPbF, IRG7PH42U-EP. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRG7PH42UPbF, IRG7PH42U-EP
Manufacturer: International Rectifier
File Size: 293.06 KB
Datasheet: IRG7PH42U-EP_InternationalRectifier.pdf
Description: INSULATED GATE BIPOLAR TRANSISTOR
Note: This datasheet PDF includes multiple part numbers: IRG7PH42UPbF, IRG7PH42U-EP.
Please refer to the document for exact specifications by model.

Features

* Low VCE (ON) trench IGBT technology
* Low switching losses
* Maximum junction temperature 175 °C
* Square RBSOA
* 100% of the parts tested for ILM
* Positive VCE (ON) temperature co-efficient
* Tight parameter distribution
* Lead -Fre

Applications

* Suitable for a wide range of switching frequencies due to low VCE (ON) and low switching losses
* Rugged transient performance for increased reliability
* Excellent current sharing in parallel operation Applications
* U. P. S
* Welding
* Solar inverter
