IRG7PH42U-EP, IRG7PH42UPBF - INSULATED GATE BIPOLAR TRANSISTOR

International Rectifier

📥 Download Datasheet

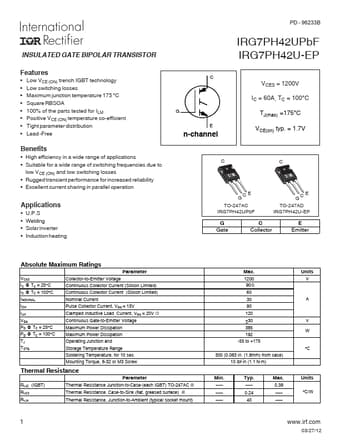

IRG7PH42U-EP Datasheet Preview — This datasheet PDF includes multiple part numbers: IRG7PH42U-EP, IRG7PH42UPBF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRG7PH42U-EP, IRG7PH42UPBF
Manufacturer	International Rectifier
File Size	293.06 KB
Description	INSULATED GATE BIPOLAR TRANSISTOR
Datasheet	IRG7PH42UPBF_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRG7PH42U-EP, IRG7PH42UPBF. Please refer to the document for exact specifications by model.

IRG7PH42U-EP Product details

Features

Low VCE (ON) trench IGBT technology.
Low switching losses.
Maximum junction temperature 175 °C.
Square RBSOA.
100% of the parts tested for ILM.
Positive VCE (ON) temperature co-efficient.
Tight parameter distribution.
Lead -Free Benefits.
High efficiency in a wide range of.
