IRAMX20UP60A - Integrated Power Hybrid IC

International Rectifier

📥 Download Datasheet

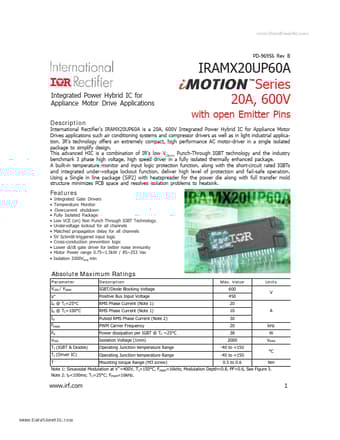

IRAMX20UP60A Datasheet Preview — Preview of IRAMX20UP60A PDF

Datasheet Details

Part number	IRAMX20UP60A
Manufacturer	International Rectifier
File Size	274.02 KB
Description	Integrated Power Hybrid IC
Datasheet	IRAMX20UP60A_InternationalRectifier.pdf

IRAMX20UP60A Product details

Description

IRAMX20UP60A Series 20A, 600V with open Emitter Pins International Rectifier's IRAMX20UP60A is a 20A, 600V Integrated Power Hybrid IC for Appliance Motor Drives applications such air conditioning systems and compressor drivers as well as in light industrial application.IR's technology offers an extremely compact, high performance AC motor-driver in a single isolated package to simplify design.This advanced HIC is a combination of IR's low VCE(on) Punch-Through IGBT technology and the industr

Features

es Integrated Gate Drivers Temperature Monitor Overcurrent shutdown Fully Isolated Package Low VCE (on) Non Punch Through IGBT Technology. Undervoltage lockout for all channels Matched propagation delay for all channels 5V Schmitt-triggered input logic Cross-conduction prevention logic Lower di/dt gate driver for better noise immunity Motor Power range 0.75~1.5kW / 85~253 Vac Isolation 2000VRMS min Absolute Maximum Ratings Parameter VCES / VRRM V+ IO @ TC=25°C IO @ TC=100°C IO FPWM Pd VISO TJ.
