IRAMX16UP60B - Integrated Power Hybrid IC

International Rectifier

📥 Download Datasheet

IRAMX16UP60B Datasheet Preview — Preview of IRAMX16UP60B PDF

Datasheet Details

Part number	IRAMX16UP60B
Manufacturer	International Rectifier
File Size	275.21 KB
Description	Integrated Power Hybrid IC
Datasheet	IRAMX16UP60B_InternationalRectifier.pdf

IRAMX16UP60B Product details

Description

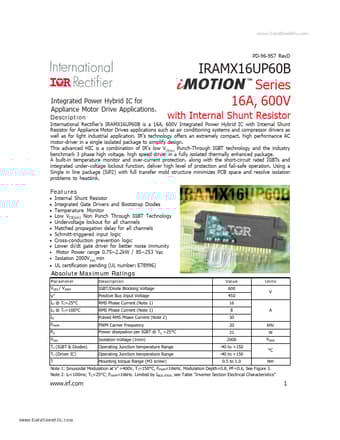

IRAMX16UP60B Series 16A, 600V with Internal Shunt Resistor International Rectifier's IRAMX16UP60B is a 16A, 600V Integrated Power Hybrid IC with Internal Shunt Resistor for Appliance Motor Drives applications such as air conditioning systems and compressor drivers as well as for light industrial application.IR's technology offers an extremely compact, high performance AC motor-driver in a single isolated package to simplify design.This advanced HIC is a combination of IR's low VCE(on) Punch-

Features

Absolute Maximum Ratings Parameter VCES / VRRM V+ IO @ TC=25°C IO @ TC=100°C IO FPWM PD VISO TJ (IGBT & Diodes) TJ (Driver IC) T.
