IRAMX30TP60A - Open Emitter Pins

IRF

📥 Download Datasheet

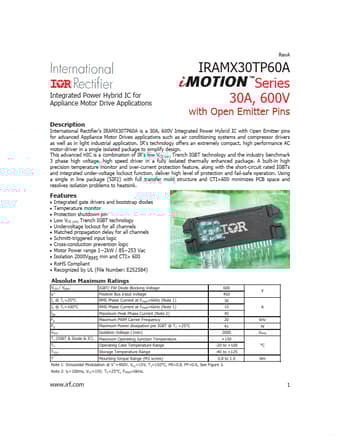

IRAMX30TP60A Datasheet Preview — Preview of IRAMX30TP60A PDF

Datasheet Details

Part number	IRAMX30TP60A
Manufacturer	IRF
File Size	495.45 KB
Description	Open Emitter Pins
Datasheet	IRAMX30TP60A-IRF.pdf

IRAMX30TP60A Product details

Description

with Open Emitter Pins IRAMX30TP60A Series 30A, 600V International Rectifier's IRAMX30TP60A is a 30A, 600V Integrated Power Hybrid IC with Open Emitter pins for advanced Appliance Motor Drives applications such as air conditioning systems and compressor drivers as well as in light industrial application.IR's technology offers an extremely compact, high performance AC motor-driver in a single isolated package to simplify design.This advanced HIC is a combination of IR's low VCE (on) Trench I

Features

Integrated gate drivers and bootstrap diodes Temperature monitor Protection shutdown pin Low VCE (on) Trench IGBT technology Undervoltage lockout for all channels Matched propagation delay for all channels Schmitt-triggered input logic Cross-conduction prevention logic Motor Power range 1~2kW / 85~253 Vac Isolation 2000VRMS min and CTI> 600 RoHS Compliant Recognized by UL (File Number: E252584) IGBT/ FW Diode Blocking Voltage Positive Bus Input Voltage RMS Phase Current at FPWM=6kHz (Note 1) RMS.
