IRAMX16UP60A - Plug N DriveTM Integrated Power Module for Appliance Motor Drive

International Rectifier

📥 Download Datasheet

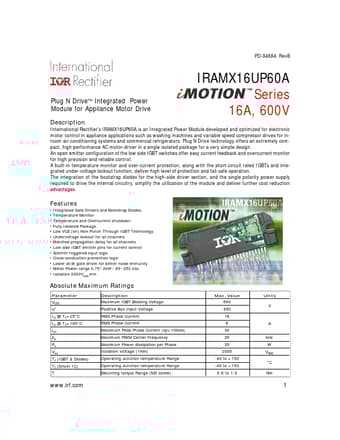

IRAMX16UP60A Datasheet Preview — Preview of IRAMX16UP60A PDF

Datasheet Details

Part number	IRAMX16UP60A
Manufacturer	International Rectifier
File Size	366.13 KB
Description	Plug N DriveTM Integrated Power Module for Appliance Motor Drive
Datasheet	IRAMX16UP60A_InternationalRectifier.pdf

IRAMX16UP60A Product details

Description

IRAMX16UP60A Series 16A, 600V International Rectifier's IRAMX16UP60A is an Integrated Power Module developed and optimized for electronic motor control in appliance applications such as washing machines and variable speed compressor drives for inroom air-conditioning systems and commercial refrigerators.Plug N Drive technology offers an extremely compact, high performance AC motor-driver in a single isolated package for a very simple design.An open emitter configuration of the low side IGBT

Features

Integrated Gate Drivers and Bootstrap Diodes.
Temperature Monitor.
Temperature and Overcurrent shutdown.
Fully Isolated Package.
Low VCE (on) Non Punch Through IGBT Technology.
Undervoltage lockout for all channels.
Matched propagation delay for all channels.
Low side IGBT emitter pins for current control.
Schmitt-triggered input logic.
Cross-conduction prevention logic.
Lower di/dt gate driver.
