IS62WV5128BLL - ULTRA LOW POWER CMOS STATIC RAM

Download the IS62WV5128BLL datasheet PDF (IS62WV5128ALL included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultra low power cmos static ram.

Description

bits.

technology.

Features

  • High-speed access time: 55ns, 70ns.
  • CMOS low power operation 36 mW (typical) operating 9 µW (typical) CMOS standby.
  • TTL compatible interface levels.
  • Single power supply 1.65V.
  • 2.2V VDD (IS62WV5128ALL) 2.5V.
  • 3.6V VDD (IS62WV5128BLL).
  • Fully static operation: no clock or refresh required.
  • Three state outputs.
  • Industrial temperature available.
  • Lead-free available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS62WV5128ALL_IntegratedSiliconSolution.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Integrated Silicon Solution

Full PDF Text Transcription

Click to expand full text

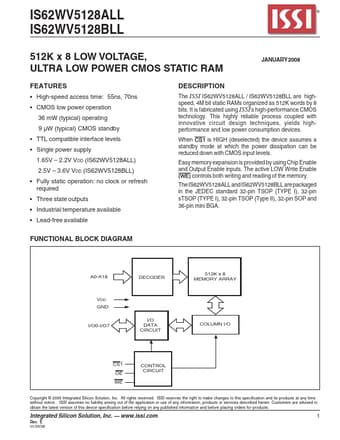

IS62WV5128ALL IS62WV5128BLL 512K x 8 LOW VOLTAGE, ULTRA LOW POWER CMOS STATIC RAM JANUARY 2008 FEATURES • High-speed access time: 55ns, 70ns • CMOS low power operation 36 mW (typical) operating 9 µW (typical) CMOS standby • TTL compatible interface levels • Single power supply 1.65V – 2.2V VDD (IS62WV5128ALL) 2.5V – 3.6V VDD (IS62WV5128BLL) • Fully static operation: no clock or refresh required • Three state outputs • Industrial temperature available • Lead-free available DESCRIPTION The ISSI IS62WV5128ALL / IS62WV5128BLL are high- speed, 4M bit static RAMs organized as 512K words by 8 bits. It is fabricated using ISSI's high-performance CMOS technology.
