IS43R86400D - 16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM

Integrated Silicon Solution

📥 Download Datasheet

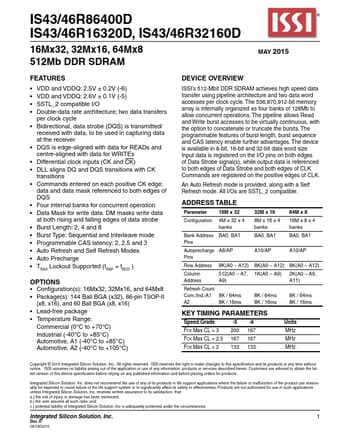

IS43R86400D Datasheet Preview — Preview of IS43R86400D PDF

Datasheet Details

Part number	IS43R86400D
Manufacturer	Integrated Silicon Solution
File Size	966.71 KB
Description	16Mx32 32Mx16 64Mx8 512Mb DDR SDRAM
Datasheet	IS43R86400D-IntegratedSiliconSolution.pdf

IS43R86400D Product details

Description

x8 A0-A12 A0-A9, A11 BA0, BA1 DQ0 DQ7 CK, CK CKE CS CAS RAS WE Row Address Input Column Address Input Bank Select Address Data I/O System Clock Input Clock Enable Chip Select Column Address Strobe Command Row Address Strobe Command Write Enable DM DQS VDD VDDQ VSS VSSQ VREF NC Data Write Mask Data Strobe Power Power Supply for I/O Pins Ground Ground for I/O Pins SSTL_2 reference voltage No Connection 4 Integrated Silicon Solution, Inc.Rev. C 11/20/2012 IS43/46R86400D IS43/46R16

Features

VDD and VDDQ: 2.5V ± 0.2V (-6) VDD and VDDQ: 2.6V ± 0.1V (-5) SSTL_2 compatible I/O Double-data rate architecture; two data transfers per clock cycle Bidirectional, data strobe (DQS) is transmitted/ received with data, to be used in capturing data at the receiver DQS is edge-aligned with data for READs and centr.
