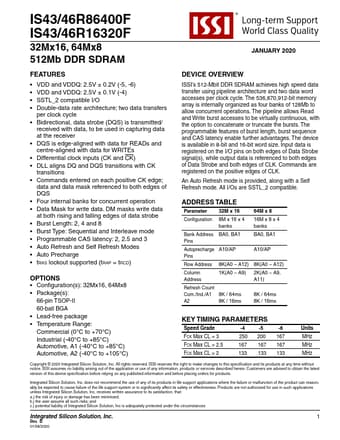

IS43R86400F, IS46R86400F - 512Mb DDR SDRAM

Datasheet Details

Part number	IS43R86400F, IS46R86400F
Manufacturer	ISSI
File Size	625.03 KB
Description	512Mb DDR SDRAM
Datasheet	IS46R86400F-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS43R86400F, IS46R86400F. Please refer to the document for exact specifications by model.

x8 A0-A12 Row Add

VDD and VDDQ: 2.5V ± 0.2V (-5, -6).
VDD and VDDQ: 2.5V ± 0.1V (-4).
SSTL_2 compatible I/O.
Double-data rate architecture; two data transfers per clock cycle.
Bidirectional, data strobe (DQS) is transmitted/ received with data, to be used in capturing data at the receiver.
DQS is edge-aligned with data for READs and centre-aligned with data for WRITEs.
Differential clock inputs (CK and CK).
DLL aligns DQ and DQS transitions.
