IS41LV16256B 256K x 16 (4-MBIT) DYNAMIC RAM WITH EDO PAGE MODE

IS41LV16256B Description

IS41LV16256B 256K x 16 (4-MBIT) DYNAMIC RAM WITH EDO PAGE MODE .
The ISSI IS41LV16256B is 262,144 x 16-bit high-performance CMOS Dynamic Random Access Memory.

IS41LV16256B Features

* TTL compatible inputs and outputs
* Refresh Interval: 512 cycles/8 ms
* Refresh Mode : RAS-Only, CAS-before-RAS (CBR), and Hidden
* JEDEC standard pinout
* Single power supply: 3.3V ± 10%
* Byte Write and Byte Read operation via two CAS
* Lea

IS41LV16256B Applications

* The IS41LV16256B is packaged in 40-pin 400-mil SOJ and TSOP (Type II). -35 35 11 18 14 60 -60 60 15 30 25 110 Unit ns ns ns ns ns KEY TIMING PARAMETERS Parameter Max. RAS Access Time (tRAC) Max. CAS Access Time (tCAC) Max. Column Address Access Time (tAA) Min. EDO Page Mode Cycle Time (tPC) Min. R

📥 Download Datasheet

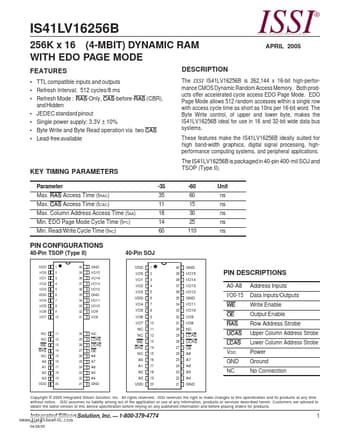

Preview of IS41LV16256B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS41LV16256B
Manufacturer
Integrated Silicon Solution
File Size
182.62 KB
Datasheet
IS41LV16256B_IntegratedSiliconSolution.pdf
Description
256K x 16 (4-MBIT) DYNAMIC RAM WITH EDO PAGE MODE
