IDTQS34XR245 - QUICKSWITCH PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 32-BIT LOW RESISTANCE MULTIWIDTHTM BUS SWITCHES

Integrated Device

📥 Download Datasheet

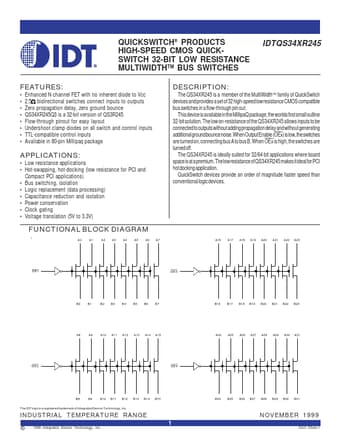

IDTQS34XR245 Datasheet Preview — Preview of IDTQS34XR245 PDF

Datasheet Details

Part number	IDTQS34XR245
Manufacturer	Integrated Device
File Size	58.81 KB
Description	QUICKSWITCH PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 32-BIT LOW RESISTANCE MULTIWIDTHTM BUS SWITCHES
Datasheet	IDTQS34XR245_IntegratedDeviceTechnology.pdf

IDTQS34XR245 Product details

Description

APPLICATIONS: Low resistance applications Hot-swapping, hot-docking (low resistance for PCI and Compact PCI applications) Bus switching, isolation Logic replacement (data processing) Capacitance reduction and isolation Power conservation Clock gating Voltage translation (5V to 3.3V) The QS34XR245 is a member of the MultiWidthTM family of QuickSwitch devices and provides a set of 32 high-speed low resistance CMOS

Features

IDTQS34XR245 Enhanced N channel FET with no inherent diode to Vcc 2.5Ω bidirectional switches connect inputs to outputs Zero propagation delay, zero ground bounce QS34XR245Q3 is a 32-bit version of QS3R245 Flow-through pinout for easy layout Undershoot clamp diodes on all switch and control inputs TTL-compatible control inputs Available in 80-pin Millipaq package.
