IDTQS34X383 - HIGH-SPEED 32-BIT BUS EXCHANGE SWITCH

Integrated Device

📥 Download Datasheet

IDTQS34X383 Datasheet Preview — Preview of IDTQS34X383 PDF

Datasheet Details

Part number	IDTQS34X383
Manufacturer	Integrated Device
File Size	220.17 KB
Description	HIGH-SPEED 32-BIT BUS EXCHANGE SWITCH
Datasheet	IDTQS34X383_IntegratedDeviceTechnology.pdf

IDTQS34X383 Product details

Description

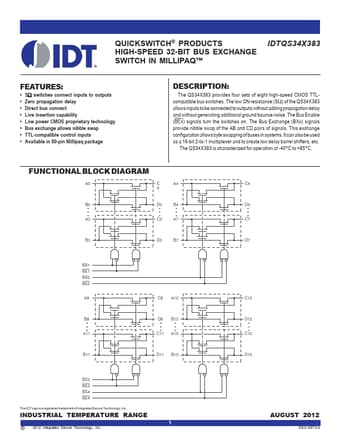

FUNCTIONAL BLOCK DIAGRAM A0 C0 A4 C4 B0 D0 B4 D4 A3 C3 A7 C7 B3 D3 B7 D7 BX1 BE1 BX2 BE2 A8 C8 A12 C12 B8 D8 B12 D12 A11 C11 A15 C15 B11 D11 B15 D15 BX3 BE3 BX4 BE4 The IDT logo is a registered trademark of Integrated Device Technology, Inc.INDUSTRIAL TEMPERATURE RANGE 1 c 1999 Integrated Device Technology, Inc.NOVEMBER 1999 DSC-5573/1 IDTQS34X383 HIGH-SPEED 32-BIT BUS EXCHANGE SWITCH INDUSTRIAL TEMPERATURE RANGE PIN CONFIGURATION BE1 C0 A0 B0 D0 C1 A1 B1 D

Features

IDTQS34X383 5Ω switches connect inputs to outputs Zero propagation delay Direct bus connect Live insertion capability Low power CMOS proprietary technology Bus exchange allows nibble swap TTL-compatible control inputs Available in 80-pin Millipaq package The QS34X383 provides four sets of eight high-speed CMOS TTLcompatible bus switches. The low ON resistance (5Ω) of the QS34X383 allows inputs to be connected to.
