IDT82V3012 - T1/E1/OC3 WAN PLL

Integrated Device

Datasheet Details

Part number	IDT82V3012
Manufacturer	Integrated Device
File Size	415.33 KB
Description	T1/E1/OC3 WAN PLL
Datasheet	IDT82V3012_IntegratedDeviceTechnology.pdf

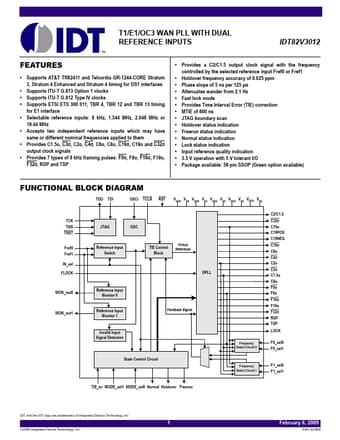

The IDT82V3012 is a T1/E1/OC3 WAN PLL with dual reference inputs.

Supports AT&T TR62411 and Telcordia GR-1244-CORE Stratum 3, Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces.
Supports ITU-T G.813 Option 1 clocks.
Supports ITU-T G.812 Type IV clocks.
Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 interface.
Selectable reference inputs: 8 kHz, 1.544 MHz, 2.048 MHz or 19.44 MHz.
Accepts two independent reference inputs which may have same or different nominal frequencies applied.
