IDT82V2088 - OCTAL CHANNEL T1/E1/J1 LONG HAUL/ SHORT HAUL LINE INTERFACE

Description

The IDT82V2088 can be configured as an octal T1, octal E1 or octal J1 Line Interface Unit.

In receive path, an Adaptive Equalizer is integrated to remove the distortion introduced by the cable attenuation.

Features

  • Eight channel T1/E1/J1 long haul/short haul line interfaces Supports HPS (Hitless Protection Switching) for 1+1 protection without external relays Receiver sensitivity exceeds -36 dB@772KHz and -43 dB@1024 KHz Programmable T1/E1/J1 switchability allowing one bill of material for any line condition Single 3.3 V power supply with 5 V tolerance on digital interfaces Meets or exceeds specifications in - ANSI T1.102, T1.403 and T1.408 - ITU.

📥 Download Datasheet

Datasheet Details

Part number IDT82V2088
Manufacturer Integrated Device
File Size 717.32 KB
Description OCTAL CHANNEL T1/E1/J1 LONG HAUL/ SHORT HAUL LINE INTERFACE
Datasheet download datasheet IDT82V2088 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT82V2081 SINGLE CHANNEL T1/E1/J1 LONG HAUL/SHORT HAUL LINE INTERFACE Renesas
IDT82V2081 SINGLE CHANNEL T1/E1/J1 LONG HAUL/SHORT HAUL LINE INTERFACE IDT
IDT82V2082 Dual channel T1/E1/J1 long haul/short haul line interface Renesas
IDT82V2082 DUAL CHANNEL T1/E1/J1 LONG HAUL/SHORT HAUL LINE INTERFACE IDT
IDT82V2041E SINGLE CHANNEL T1/E1/J1 SHORT HAUL LINE INTERFACE IDT

Other Datasheets by Integrated Device

Part Number Description
IDT82V2084 QUAD CHANNEL T1/E1/J1 LONG HAUL/ SHORT HAUL LINE INTERFACE
IDT82V2058 OCTAL E1 SHORT HAUL LINE INTERFACE
IDT82V1671 CHIPSET OF RINGING SUBSCRIBER LINE INTERFACE CIRCUIT (RSLIC) & QUAD PROGRAMMABLE PCM CODEC
IDT82V3011 T1/E1/OC3 WAN PLL
IDT82V3012 T1/E1/OC3 WAN PLL

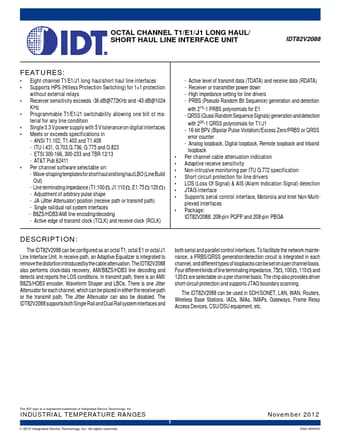

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
OCTAL CHANNEL T1/E1/J1 LONG HAUL/ SHORT HAUL LINE INTERFACE UNIT IDT82V2088 FEATURES: • • • • • • Eight channel T1/E1/J1 long haul/short haul line interfaces Supports HPS (Hitless Protection Switching) for 1+1 protection without external relays Receiver sensitivity exceeds -36 dB@772KHz and -43 dB@1024 KHz Programmable T1/E1/J1 switchability allowing one bill of material for any line condition Single 3.3 V power supply with 5 V tolerance on digital interfaces Meets or exceeds specifications in - ANSI T1.102, T1.403 and T1.408 - ITU I.431, G.703,G.736, G.775 and G.
