IDT82V3011 - T1/E1/OC3 WAN PLL

Integrated Device

Datasheet Details

Part number	IDT82V3011
Manufacturer	Integrated Device
File Size	403.96 KB
Description	T1/E1/OC3 WAN PLL
Datasheet	IDT82V3011_IntegratedDeviceTechnology.pdf

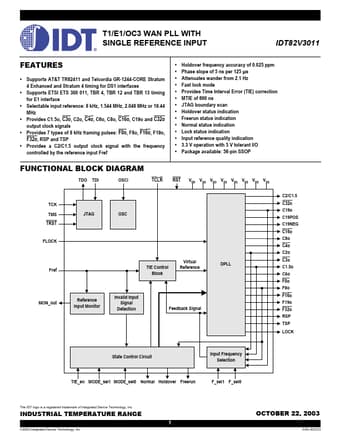

The IDT82V3011 is a T1/E1/OC3 WAN PLL with single reference input.

Supports AT&T TR62411 and Telcordia GR-1244-CORE Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces.
Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 interface.
Selectable input reference: 8 kHz, 1.544 MHz, 2.048 MHz or 19.44 MHz.
Provides C1.5o, C3o, C2o, C4o, C6o, C8o, C16o, C19o and C32o output clock signals.
Provides 7 types of 8 kHz framing pulses: F0o, F8o, F16o, F19o, F32o, RSP and TSP.
Provides a C2/C1.5 outp.
