IDT82V3002A - WAN PLL

Integrated Device Technology

Datasheet Details

Part number	IDT82V3002A
Manufacturer	Integrated Device Technology
File Size	388.63 KB
Description	WAN PLL
Datasheet	IDT82V3002A_IntegratedDeviceTechnology.pdf

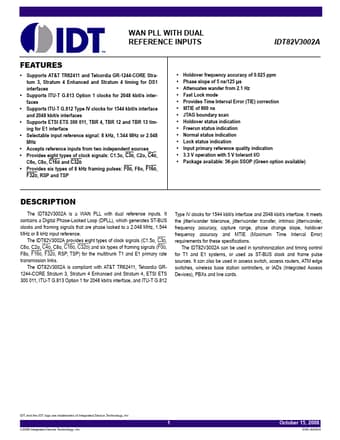

The IDT82V3002A is a WAN PLL with dual reference inputs.

Supports AT&T TR62411 and Telcordia GR-1244-CORE Stratum 3, Stratum 4 Enhanced and Stratum 4 timing for DS1 interfaces.
Supports ITU-T G.813 Option 1 clocks for 2048 kbit/s interfaces.
Supports ITU-T G.812 Type IV clocks for 1544 kbit/s interface and 2048 kbit/s interfaces.
Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing for E1 interface.
Selectable input reference signal: 8 kHz, 1.544 MHz or 2.048 MHz.
Accepts reference inputs fr.
